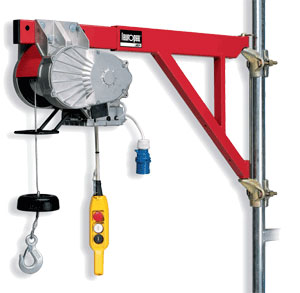

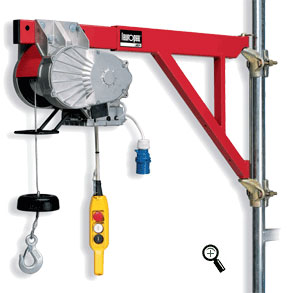

Electrical Building Hoist Under 440 Lb / 200 Kg |
| MODEL | HE-150 FAST | HE-200 | HE-235 |
| Motor Type | Monophase | Monophase | Monophase |
| Voltage | 220V | 220V | 220V |
| Frequency | 50/60 Hz | 50/60 Hz | 50/60 Hz |
| Engine power watts | 1000 W | 750 W | 750 W |
| Max lifting capacity lb ( Kg ) | 330 - ( 150 ) | 440 - ( 200 ) | 440 - ( 200 ) |
| Cable length feet ( mts ) | 131 - ( 40 ) | 82 - ( 25 ) | 82 - ( 25 ) |
| Lifting speed feet/min ( mts /min ) | 108 - ( 33 ) | 75.45 - ( 23 ) | 75.45 - ( 23 ) |
| Steel cable Ø Inch ( mm ) | 0.157 - ( 4 ) | 0.196 - ( 5 ) | 0.196 - ( 5 ) |
| Hoist weight lb ( kg ) | 88 - (40) | 81.4 - (37) | 88 - (44) |
| Dimensions Inch ( mm ) | 32.6 x 10.63 x 20.47h ( 830 x 270 x 520h ) |
27.2 x 8.27 x 13.78h ( 690 x 210 x 350h ) |
32.6 x 10.63 x 20.47h ( 830 x 270 x 520h ) |
We reserve the right to improve or withdraw the specification or products without prior notice.
