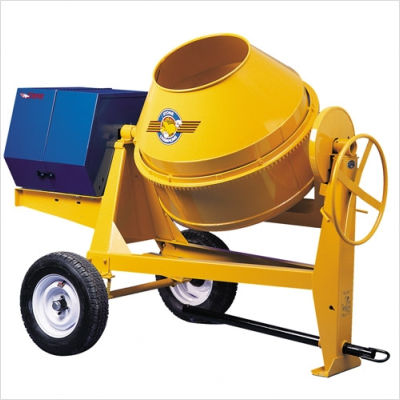

Deluxe Large Side Dump A generous 10 cu. ft. capacity for extra large batches. Complete with B78 x 13 (25" dia.) high speed tires, tapered roller bearings. 56" wide axle with cantilever springs. 2-3/8" O.D., 7/32" thick towpole with safety chain, pintile style hitch, 24" dia. handwheel, chain drive and dump lock, spacious cowls for maximum ventilation. |
| MODEL | 105CM |
| Weight Lbs ( Kg ) | 821 lbs - ( 372.4 kg ) |
| Batch cap bags | 1 1/4 - 1 3/4 |
| Batch cap Cu/feet ( M³ ) | 10 cu.ft - ( 0.28m³ ) |
| Engine Hp ( Kw ) |
w/o power 5.5 hp B&S ( 4 kw ) 8 hp B&S ( 6 kw ) 8 hp B&S IP ( 6 kw ) 10 hp B&S IP ( 8 Kw ) 5.5 hp Honda ( 4 kw ) 8 hp Honda ( 6 kw ) 6 hp Robin ( 5 kw ) 8.5 hp Robin ( 6 kw ) 6.4 hp Robin Diesel ( 5 kw ) 1 hp Elect ( 0.75 kw ) |
We reserve the right to improve or withdraw the specification or products without prior notice.
