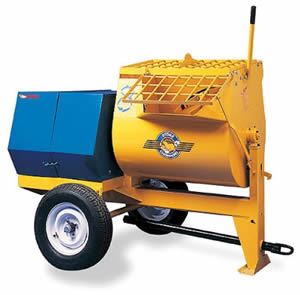

CHAMPION MORTAR MIXER FROM 10 TO 16 CU/FEET |
| MODEL | 1050PM | 1265PM | 1285PM* | 1650PM* |
| Weight Lbs ( Kg ) | 875 lbs - ( 397 kg ) | 1073 lbs - ( 488 kg ) | 1073 lbs - ( 488 kg ) | 1230 lbs - ( 559 kg ) |
| Batch cap bags | 2 1/2 - 3 1/2 | 3 - 4 | 3 - 4 | 4 1/2 – 5 1/2 |
| Batch cap Cu/feet ( M³ ) | 10 cu.ft - ( 0.28m³ ) | 12 cu.ft - ( 0.34m³ ) | 12 cu.ft - ( 0.34m³ ) | 16 cu.ft - ( 0.45 m³) |
| Total Vol Cu/feet ( M³ ) | 11.5 cu.ft - ( 0.33m³ ) | 17.8 cu.ft - ( 0.42m³ ) | 14.8 cu.ft - ( 0.42m³ ) | 19.5 cu.ft - ( 0.46m³ ) |
| Engine Hp ( Kw ) | w/o power 5.5 hp B&S ( 4.1kw ) 5.5 hp Honda ( 4.1 kw ) 6 hp Robin ( 4.5 kw ) 0.75 hp elect ( 0.56 kw ) 1.0 hp elect ( 0.75 kw ) |
w/o power 5.5 hp B&S ( 4.1kw ) 5.5 hp Honda ( 4.1 kw ) 8 hp Honda ( 6 kw ) 8 hp B&S IP ( 6 kw ) 6 hp Robin ( 4.5 kw ) 8.5 hp Robin ( 6.3 kw ) 1.5 hp elect ( 1.1 kw ) |
11 hp Honda ( 8.2 kw ) 11 hp Honda E ( 8.2 kw ) 11.5 hp Robin ( 8.6 kw ) 9.2 hp Wisc ( 6.9 kw) 5 hp elect ( 3.7 kw ) *Totally enclosed gear drive |
11 hp Honda ( 8.2 kw ) 11 hp Honda E ( 8.2 kw ) 11.5 hp Robin ( 8.6 kw ) 5 hp elect ( 3.7 kw ) *Totally enclosed gear drive |
We reserve the right to improve or withdraw the specification or products without prior notice.
