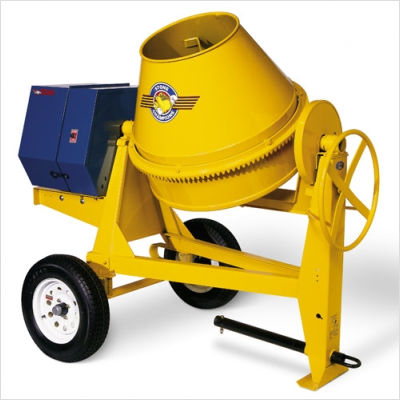

Large Heavy Duty Side Dump A generous 9 cu. ft. capacity for large batches. Complete with B78 x 13 (25" dia.) high speed tires, tapered roller bearings, 56" wide axle with cantilever springs, 2-3/8" O.D., 7/32" thick towpole with safety chain, pintile style hitch, 24" dia. handwheel, chain drive and dump lock, spacious cowl for maximum ventilation.
|
| MODEL | 95CM | 95CMED | 95CMP | 95CMPED |
| Weight Lbs ( Kg ) | 800 lbs - ( 362.9 kg ) | 875 lbs - ( 396.6 kg ) | 825 lbs - ( 375 kg ) | 845 lbs - ( 384 kg ) |
| Batch cap bags | 1 - 1 1/2 | 1 - 1 1/2 | 1 - 1 1/2 | 1 - 1 1/2 |
| Batch cap Cu/feet ( M³ ) | 9 cu.ft - ( 0.26m³ ) | 9 cu.ft - ( 0.26m³ ) | 9 cu.ft - ( 0.26m³ ) | 9 cu.ft - ( 0.26m³ ) |
| Engine Hp ( Kw ) |
w/o power 8 hp B&S ( 6 kw ) 8 hp B&S IP ( 6 kw ) 8 hp Honda ( 6 kw ) 10 hp B&S IP ( 8 Kw ) 8.5 hp Robin ( 6 kw ) 6.4 hp Robin Diesel ( 5 kw ) 1.5 hp Elect ( 1 kw ) |
w/o power 8 hp B&S ( 6 kw ) 8 hp B&S IP ( 6 kw ) 8 hp Honda ( 6 kw ) 10 hp B&S IP ( 8 Kw ) 8.5 hp Robin ( 6 kw ) 6.4 hp Robin Diesel ( 5 kw ) 1.5 hp Elect ( 1 kw ) |
w/o power 8 hp B&S ( 6 kw ) 8 hp B&S IP ( 6 kw ) 8 hp Honda ( 6 kw ) 10 hp B&S IP ( 8 Kw ) 8.5 hp Robin ( 6 kw ) 6.4 hp Robin Diesel ( 5 kw ) 1.5 hp Elect ( 1 kw ) |
w/o power 8 hp B&S ( 6 kw ) 8 hp B&S IP ( 6 kw ) 8 hp Honda ( 6 kw ) 10 hp B&S IP ( 8 Kw ) 8.5 hp Robin ( 6 kw ) 6.4 hp Robin Diesel ( 5 kw ) 1.5 hp Elect ( 1 kw ) |
We reserve the right to improve or withdraw the specification or products without prior notice.
