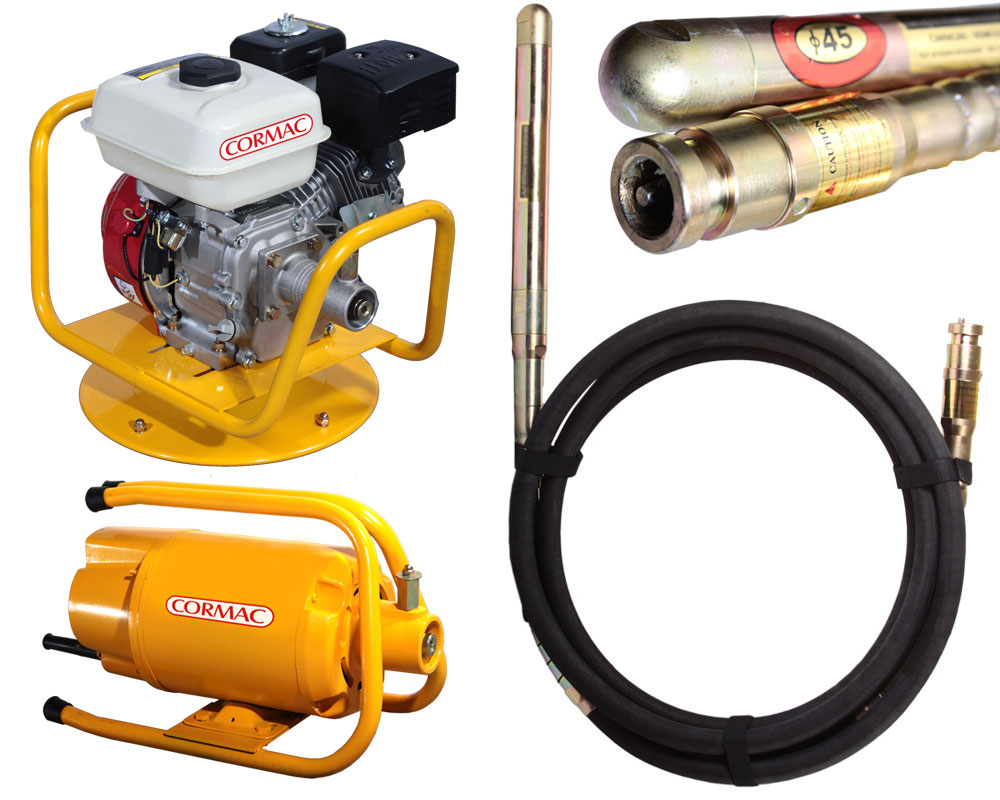

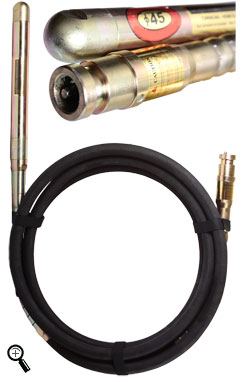

Concrete Vibrators Pencil Head & Power Units Cormac internal concrete vibrators, uses the pendulum principle, 3000 rpm of the drive unit translates via the flexible shaft into aprox 12000 vibrations per minute in the vibrator head. The low output speed ensures high reliability and extended service life, can be used between two types of drive units ( interchangeable ), electrical motor, gasoline and diesel engines, with 6 standard head vibrators diameter.
|
| MODEL | VIBRATOR HEAD INCH (MM) | VPM | VIBRATION AMPLITUDE INCH (MM) |
FLEXIBLE HOSE DIAMETER & LENGTH FEET (MTS) |
FLEXIBLE SHAFT DIAMETER INCH (MM) |
| KV-28 | Ø1.10 x 17.71 ( Ø 28 x 450 ) |
10000 – 12000 | 0.02 ( 0.7 ) |
Ø 1.10 x 13.12 -19.7 ( Ø 28 x 4-6 ) |
Ø 0.314 ( 8 ) |
| KV-32 | Ø1.26 x 17.71 ( Ø 32 x 450 ) |
10000 – 12000 | 0.04 ( 1.1 ) |
Ø 1.22 x 13.12 -19.7 ( Ø 31 x 4-6 ) |
Ø 0.314 ( 8 ) |
| KV-38 | Ø1.49 x 17.71 ( Ø 38 x 450 ) |
10000 – 12000 | 0.06 ( 1.6 ) |
Ø 1.22 x 13.12 -19.7 ( Ø 31 x 4-6 ) |
Ø 0.39 ( 10 ) |
| KV-45 | Ø1.77 x 19.68 ( Ø 45 x 500 ) |
10000 – 12000 | 0.07 ( 2.0 ) |
Ø 1.22 x 13.12 -19.7 ( Ø 31 x 4-6 ) |
Ø 0.39 ( 10 ) |
| KV-50 | Ø1.96 x 19.68 ( Ø 50 x 500 ) |
10000 – 12000 | 0.08 ( 2.2 ) |
Ø 1.30 x 13.12 -19.7 ( Ø 33 x 4-6 ) |
Ø 0.47 ( 12 ) |
| KV-60 | Ø2.36 x 19.68 ( Ø 60 x 500 ) |
9000 - 12000 | 0.09 ( 2.4 ) |
Ø 1.30 x 13.12 -19.7 ( Ø 33 x 4-6 ) |
Ø 0.47 ( 12 ) |
We reserve the right to improve or withdraw the specification or products without prior notice.

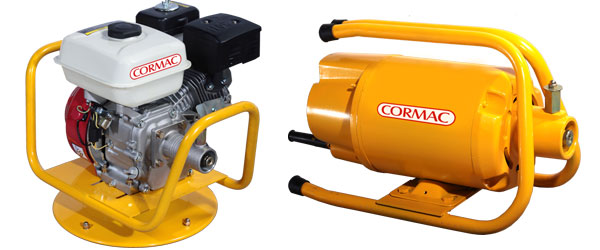

| POWER UNITS SPECIFICATIONS |
| Electric motor 1 Hp, 110V @ 3400 RPM -50/60Hz, Electric motor 1 Hp, 220V @ 3400 RPM -50/60Hz, |
| Gasoline Kapa engine 6.5 Hp @ 3400 RPM, 4 cycle, air cooled - Gasoline Honda Engines 5.5 / 6.5 Hp @ 3400 rpm, 4 cycle, air cooled |
We reserve the right to improve or withdraw the specification or products without prior notice.
