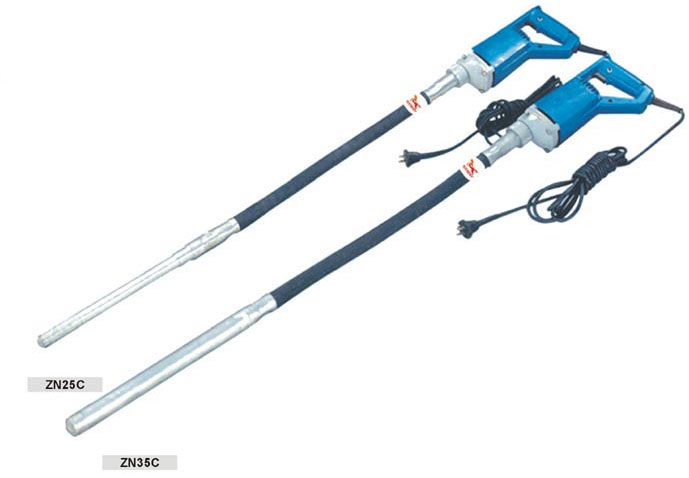

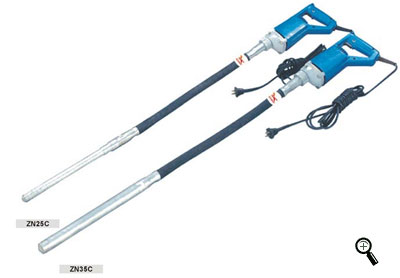

| MODEL | ZN25C | ZN35C | |
| VIBRATING HEAD | DIAMETER Inch (mm ) | 1 - ( 25 ) | 1.37 ( 35 ) |
| Length Inch ( mm ) | 18.6 - ( 473 ) | 17.9 ( 456 ) | |
| Vibrating frequency Hz | 260 @ 15600 rpm | 220 @ 13200 rpm | |
| Vibrating amplitude Inch (mm) | 0.05 - ( 1.40 ) | 0.06 ( 1.60 ) | |
| FLEXIBLE HOSE & SHAFT | Flexible hose outside Ø Inch ( mm ) | 1.18 - ( 30 ) | |
| Flexible shaft Ø Inch ( mm ) | 0.39 - ( 10 ) | ||
| Length Inch ( mm ) | 27.5 - ( 700 ) | ||
| DRIVING MOTOR | Power Hp ( Kw ) | 0.75 - ( 0.58 ) | |
| Power source | 220V-50Hz - 110V-60Hz | ||
| Current Amp | 5.4 | ||
| No Load speed rpm | 4000 | ||
| Overall dimension Inch ( mm ) | 54.2 x 3.15 x 5.44 - ( 1376 x 80 x 138 ) | 53.5 x 3.15 x 5.44 - ( 1358 x 80 x 138 ) | |
| Total weight Lbs ( kg ) | 12.3 - ( 5.6 ) | 14.3 - ( 6.5 ) | |
We reserve the right to improve or withdraw the specification or products without prior notice.
