CORMAC, INC. Construction Equipment

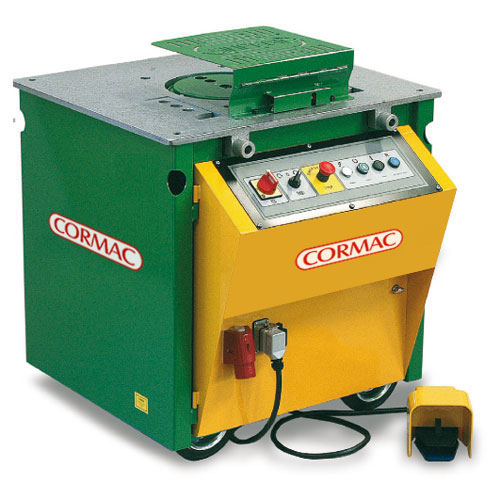

Electric Bending Machine
Cormac bending machine is compact and durable and allows the operator to work from both sides. The machine is equipped with all the devices that meet the current EEC regulations on safety of Machine Directive 98/37.

Standard Equipment
1 hardened square pin;
1 hardened stirrup bending pin;
3 hardened bush holding pins;
1 checking block;
1 pedal for remote control;
1 bush Ø 60;
1 bush Ø 70;
1 bush Ø 80;
1 bush Ø 95;
1 bush Ø 120;
1 bush Ø 130.

MODEL	SPECIFICATIONS#E80C0C
	BEND CAPACITY						ELECTRIC MOTOR	WEIGHT Lb ( Kg )	DIMENSION Inch ( mm )
	R = 65Kg /mm ²			R = 85Kg /mm ²
P30	1 Ø 26 mm	2 Ø 20 mm	3 Ø 16 mm	1 Ø 24 mm	2 Ø 18 mm	3 Ø 14 mm	2 Hp / 1.5 kW	677 - ( 38 )	32.3 x 35.5 x 33.5 ( 820 x 900 x 850 )
P32	1 Ø 28 mm	2 Ø 22 mm	3 Ø 18 mm	1 Ø 26 mm	2 Ø 20 mm	3 Ø 16 mm	3 Hp / 2.2 kW	770 - ( 350 )	33.5 x 35.5 x 33.5 ( 850 x 900 x 850 )
P36	1 Ø 32 mm	2 Ø 24 mm	3 Ø 18 mm	1 Ø 30 mm	2 Ø 20 mm	3 Ø 16 mm	4 Hp / 3.0 kW	797 - ( 362 )	33.9 x 35.5 x 33.5 ( 860 x 900 x 850 )
P42	1 Ø 36 mm	2 Ø 28 mm	3 Ø 24 mm	1 Ø 34 mm	2 Ø 26 mm	3 Ø 22 mm	4 Hp / 3.0 kW	1320 - ( 600 )	33.9 x 35.5 x 33.5 ( 10500 x 950 x 890 )
P52	1 Ø 42 mm	2 Ø 34 mm	3 Ø 26 mm	1 Ø 38 mm	2 Ø 32 mm	3 Ø 24 mm	5.5 Hp / 4.0 kW	1386 - ( 630 )	33.9 x 35.5 x 33.5 ( 10500 x 950 x 890 )

All machines wired 220V-50/60Hz trifase. Model P30, optional wired 220V-50/60Hz monofase.

We reserve the right to improve or withdraw the specification or products without prior notice.
