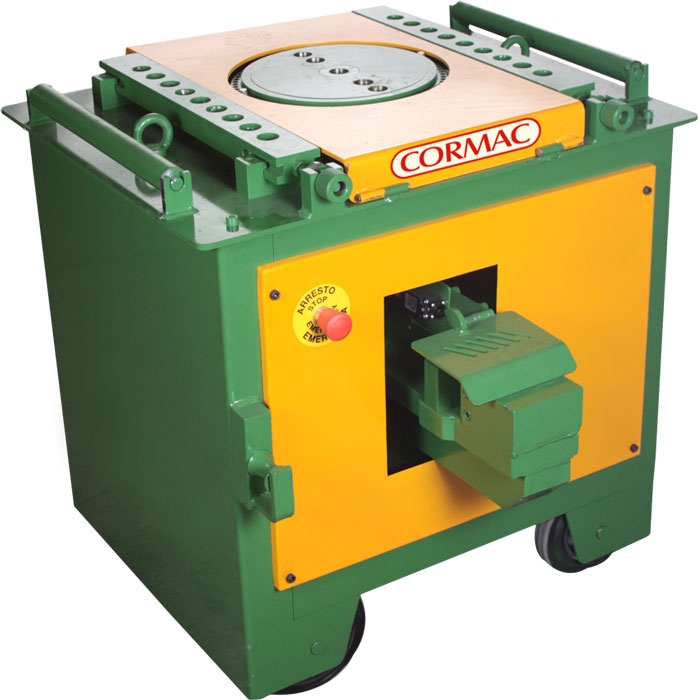

Electric Combined Machine
Cormac combined machines is compact and durable and allows the operator to work from both sides. The machine is equipped with all the devices that meet the current EEC regulations on safety of Machine Directive 98/37.
Standard Equipment
1 perno quadro temprato;
1 hardened square pin;
1 hardened stirrup bending pin;
3 hardened bush holding pins;
1 checking block;
1 pedal for remote control;
1 bush Ø 50; 1 bush Ø 60;
1 bush Ø 70; 1 bush Ø 80;
MODEL SPECIFICATIONS
BEND CAPACITY CUT CAPACITY ELECTRIC MOTOR WEIGHT
Lb ( Kg ) 		DIMENSION
Inch ( mm )
R = 65Kg /mm ² R = 85Kg /mm ² R = 65Kg /mm ² R = 85Kg /mm ²
TP22/26 1 Ø 24 mm 1 Ø 22 mm 1 Ø 20 mm 1 Ø 18 mm 2 Hp / 1.5 kW 814
( 370 )		 29.5  x 39.3 x 33.5
( 750 x 1000 x 850 )
TP24/28 1 Ø 26 mm 1 Ø 24 mm 1 Ø 22 mm 1 Ø 20 mm 3 Hp / 2.2 kW 858
( 390 )		 32.3 x 41.4 x 33.5
( 820 x 1050 x 850 )
TP26/32 1 Ø 28 mm 1 Ø 26 mm 1 Ø 24 mm 1 Ø 22 mm 3 Hp / 2.2 kW 968
( 440 )		 33.1 x 41.7 x 33.5
( 840 x 1060 x 850 )
TP30/35 1 Ø 30 mm 1 Ø 28 mm 1 Ø 26 mm 1 Ø 24 mm 4 Hp / 3.0 kW 1012
( 460 )		 35.4 x 35.5 x 33.5
( 900 x 1100 x 850 )
TP38/45 1 Ø 40 mm 1 Ø 36 mm 1 Ø 30 mm 1 Ø 28 mm 5.5 Hp / 4.0 kW 1760
( 800 )		 40.9 x 48.3 x 33.5
( 1040 x 1220 x 850 )

All machines wired 220V-50/60Hz trifase. Model TP22/26, optional wired 220V-50/60Hz monofase.

We reserve the right to improve or withdraw the specification or products without prior notice.
