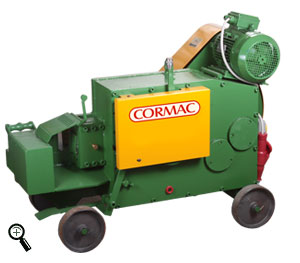

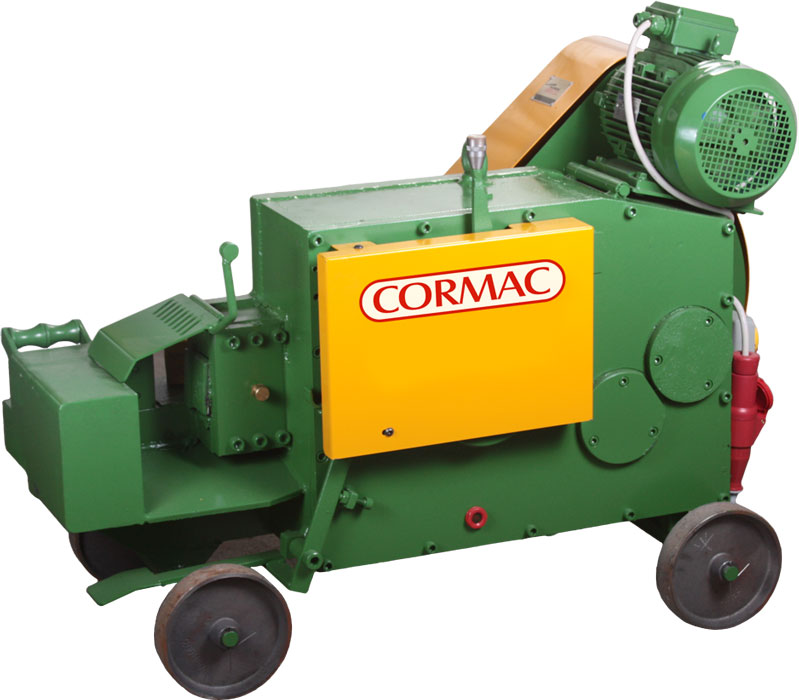

Electric Rebbar Cutter Machine The range of Cormac cutting machines offers a wide range of accommodations and services as varied and different as the needs of our customers. Strong and efficient machines for small, medium and large diameters... impossible not to find one suited to your needs! The machine is equipped with all the devices that meet the current EEC regulations on safety of Machine Directive 98/37. |
| MODEL | SPECIFICATIONS | ||||||||
| CUT CAPACITY | ELECTRIC MOTOR | WEIGHT Lb ( Kg ) |
DIMENSION Inch ( mm ) |
||||||
| R = 65Kg /mm ² | R = 85Kg /mm ² | ||||||||
| C22 | 1 Ø 20 mm | 2 Ø 14 mm | 3 Ø 10 mm | 1 Ø 18 mm | 2 Ø 12 mm | 3 Ø 8 mm | 2 Hp / 1.5 kW | 275 ( 125 ) |
28.0 x 15.8 x 27.2 ( 710 x 400 x 690 ) |
| C32 | 1 Ø 26 mm | 2 Ø 18 mm | 3 Ø 10 mm | 1 Ø 24 mm | 2 Ø 16 mm | 3 Ø 14 mm | 3 Hp / 2.2 kW | 770 ( 350 ) |
31.5 x 22.5 x 29.6 ( 800 x 570 x 750 ) |
| C36 | 1 Ø 30 mm | 2 Ø 20 mm | 3 Ø 16 mm | 1 Ø 26 mm | 2 Ø 18 mm | 3 Ø 14 mm | 4 Hp / 3.0 kW | 990 ( 450 ) |
41.4 x 24.1 x 32.3 ( 1050 x 610 x 820 ) |
| C42 | 1 Ø 44 mm | 2 Ø 30 mm | 3 Ø 24 mm | 1 Ø 36 mm | 2 Ø 26 mm | 3 Ø 22 mm | 4 Hp /3.0 kW | 1320 ( 600 ) |
465 x 279.5 x 34.3 ( 11800 x 710 x 870 ) |
| P52 | 1 Ø 42 mm | 2 Ø 34 mm | 3 Ø 26 mm | 1 Ø 38 mm | 2 Ø 32 mm | 3 Ø 24 mm | 5.5 Hp / 4.0 kW | 1606 ( 730 ) |
33.9 x 35.5 x 33.5 ( 10500 x 950 x 890 ) |
All machines wired 220V-50/60Hz trifase. Model C32, optional wired 220V-50/60Hz monofase.
We reserve the right to improve or withdraw the specification or products without prior notice.
