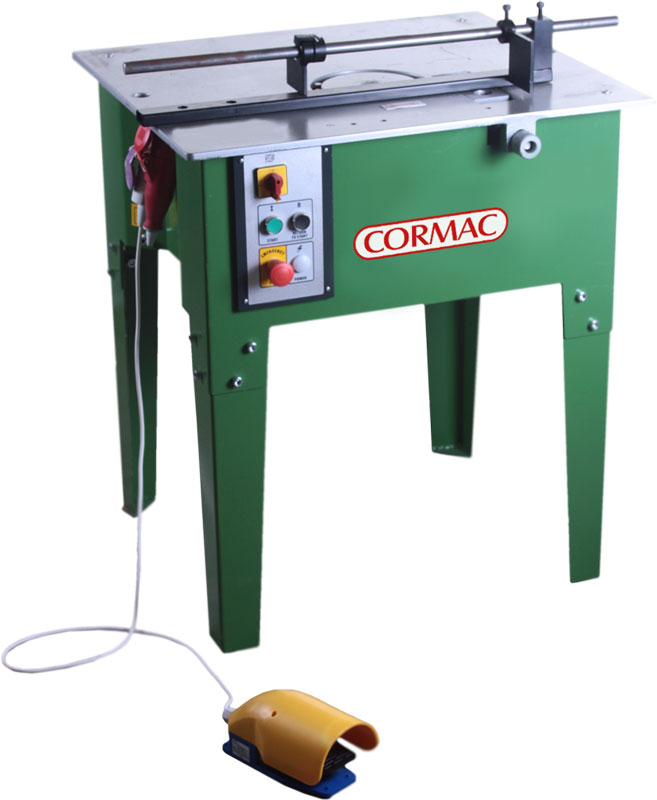

Electric Stirrup Bending Machine ST16 Rapida, is a machine studied for elevated productions of stirrups. CE switchboard with anti-repeating cycle and present operator. The machine is equipped with all the devices that meet the current EEC regulations on safety of Machine Directive 98/37.
|
| MODEL | SPECIFICATIONS | ||||||||
| BEND CAPACITY | ELECTRIC MOTOR | WEIGHT Lb ( Kg ) |
DIMENSION Inch ( mm ) |
||||||
| R = 65Kg /mm ² | |||||||||
| ST16 | 1 Ø 16 mm | 2 Ø 12 mm | 3 Ø 10 mm | 4 Ø 8 mm | 5 Ø 6 mm | 6 Ø 4 mm | 2 Hp / 1.5 kW | 341 - ( 155 ) | 31.5 x 27.6 x 37.8 ( 800 x 700 x 960 ) |
All machines wired 220V-50/60Hz trifase.Optional, wired in single phase.
We reserve the right to improve or withdraw the specification or products without prior notice.
