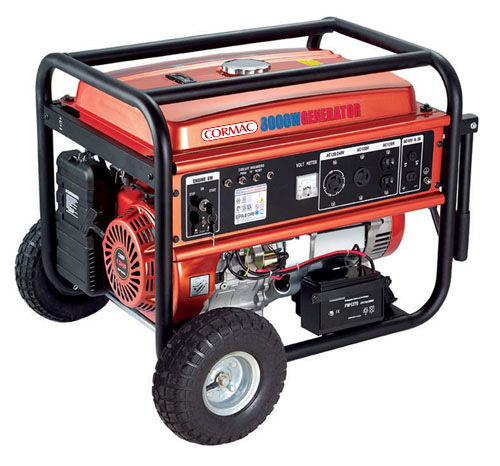

Gasoline Generator Model KJ8000 |
 |
|
||||
|
|
||||
Gasoline Generator Model KJ8000 |
| SPECIFICATIONS | MODEL KJ8000 | |
| GENERATOR | Type | Brush, Revolving Magnetic Field, 2 Poles – Single Phase |
| Frame | Ø 32mm Steel Tube | |
| Rate AC Output | 6.0 Kw / 7.0 Kw | |
| Max Ac Output | 7.0 Kw / 8.0 Kw | |
| Frequency | 50Hz / 60 Hz | |
| Voltage | 110 / 120 – 220 / 240V | |
| Voltage regulator | Condenser | |
| Power Factor | 1.0 | |
| ENGINE | Model | Kapa 188F |
| Type | 4 Stroke, Air Cooled, OHV, Single Cylinder | |
| Bore x Stroke mm ( Inch ) | 88 x 64 mm ( 3.46 x 2.52 inch ) | |
| Displacements | 389 ml | |
| Recommended fuel | Unleaded Gasoline | |
| Fuel tank capacity Lit ( Gal ) | 25 Lit ( 6.6 Gal ) | |
| Fuel consumption | ≤ 374g / Kw - hour | |
| Engine oil capacity Lit ( Gal ) | 1.1 Lit ( 0.29 Us qt ) | |
| Start Mode | Recoil and electric starter | |
| STANDARD FEATURES |
Oil alert | yes |
| Fuel gauge | yes | |
| Ac voltmeter | yes | |
| Ac circuit breaker | yes | |
| Electric starter | yes | |
| DC socket ( 12V/8.3 Amp ) | yes | |
| DC circuit breaker | yes | |
| Battery 12V | yes | |
| Handle | yes | |
| Wheels | yes | |
| SET | Cont working time | 7.5 – 8 Hours |
| Noise Level @ 7 meters ( 22.9 feet ) | 72 dB ( A ) | |
| Packing dimension L x W x H mm ( inch ) | 830 x 575 x 580 mm ( 32.68 x 22.64 x 22.83 inch ) | |
| Net weight Kg ( Lb ) | 103 Kg ( 227 Lb ) | |
| Gross weight kg ( Lb ) | 106 Kg ( 233 Lb ) |
We reserve the right to improve or withdraw the specification or products without prior notice.
