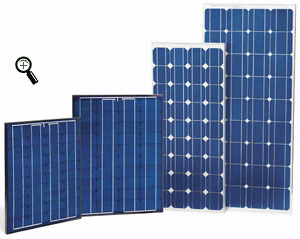

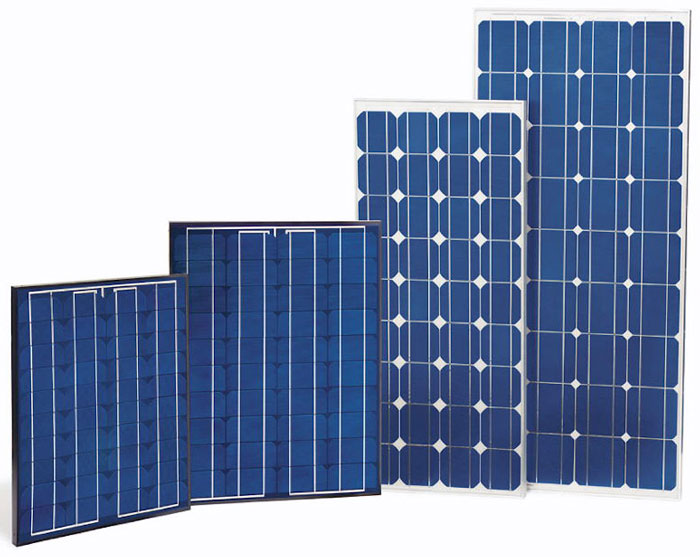

Specification Sheet(125*125mm) | |||||||
Output Power (Peak W ) |
Dimension ( mm) |
Weight ( kg ) |
Working voltage Vop(V) |
Working current Iop(A) |
Open voltage Voc(V) |
Short circuit current Isc(A) |
SLA battery Voltage (V) |
3 | 158X241X25 | 0.5 | 8.5 | 0.36 | 10.5 | 0.4 | 6 |
4 | 308X166X25 | 0.77 | 8.5 | 0.47 | 10.5 | 0.54 | 6 |
4 | 16.8 | 0.24 | 21 | 0.27 | 12 | ||
5 | 296X215X25 | 0.3 | 16.8 | 0.48 | 21 | 0.54 | 12 |
8 | 286X330X25 | ||||||
10 | 286X406X25 | 1.5 | 16.8 | 0.59 | 21 | 0.66 | 12 |
12 | 16.8 | 0.71 | 21 | 0.8 | |||
14 | 286X541X25 | 2 | 16.8 | 0.83 | 21 | 0.96 | 12 |
15 | |||||||
16 | 17.2 | 0.93 | 21.5 | 0.99 | |||
18 | 296X641X25 | 2.4 | 16.8 | 1.07 | 21 | 1.2 | 12 |
20 | 17.2 | 1.15 | 21.5 | 1.24 | |||
24 | 541X451X25 | 3.15 | 16.8 | 1.43 | 21 | 1.56 | 12 |
26 | 17.2 | 1.51 | 21.5 | 1.63 | |||
30 | 296X966X25 | 3.85 | 16.8 | 1.78 | 21 | 2.03 | 12 |
36 | 541X641X35 | 4.7 | 16.8 | 2.14 | 21 | 2.4 | 12 |
40 | 17.2 | 2.33 | 21.5 | 2.5 | |||
55 | 1057X457X35 | 6.6 | 17.60 | 3.12 | 21.6 | 3.3 | 12 |
70 | 546X1196X35 | 8.5 | 16.8 | 4.16 | 21 | 4.7 | 12 |
75 | 17.2 | 4.36 | 21.5 | 4.8 | |||
80 | 17.6 | 4.55 | 21.6 | 4.9 | |||
110 | 1066X811X40 | 11.8 | 17.60 | 6.25 | 21.6 | 6.6 | |
150 | 809X1581X40 | 14 | 34.4 | 4.36 | 43.2 | 4.7 | 24 |
160 | 34.4 | 4.65 | 43.2 | 4.9 | |||
170 | 35.2 | 4.83 | 43.2 | 5.03 | |||
180 | 35.2 | 5.1 | 43.4 | 5.5 |
Absolute maximum limits: | ||
Parameters | Rating | Unit |
Operation temperature | -40 to + 85 | º C |
Storage temperature | -40 to + 85 | º C |
Dielectric Voltage withstand | 1800max | V-DC |
Temperation coefficients: | ||
Current temperature coefficient | α(1sc) | +0.1% / ºC |
Voltage temperature coefficient | β(Voc) | -0.38% / ºC |
Power temperature coefficient | Υ(Wp) | -0.47% / ºC |
We reserve the right to improve or withdraw the specification or products without prior notice.
