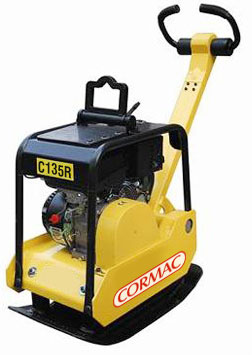

Plate Compactor Model C135R

Powerful design for compaction of sand, gravel, grit and granular materials

Feature

  • Open plate provides a self cleaning
  • Sealed belt cover to prevent sand and soil in
  • Radius base plate for easy access to difficult places as corners
  • Protective frame
  • Heavy duty rubber mount shock reduce vibration
  • Round edge protect the exciter housing and even objects around working site
  • Lifting hook as standard part
  • Foldable handle for easy transportation and stock
SPECIFICATIONS C135R
Engine Air cooled, 4 cycle, single cylinder
Engine Type Gasoline, Kapa
Power Hp ( Kw ) 6.5 - ( 4.8  )
Operation mass Lbs ( Kg ) 297 ( 135 )
Frequency VPM 7000
Compaction Depth In ( cm ) 16 - (40 )
Centrifugal Force kN 25
Plate size inch ( cm ) L x W 25 x 15.7 ( 64 x 40 )
Shipping size Inch ( cm ) 31.5 x 20 x 45 ( 80 x 51 x 114 )

We reserve the right to improve or withdraw the specification or products without prior notice.
