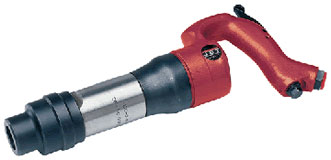

Jet Pneumatic Chipping Hammer

  • Available with four different stroke lengths, 1"- 4"
  • Ring valve type
  • Drop-forged castle tooth style handle
  • Heavy-duty hammer provides hard hitting powerful blows
  • Outside trigger and open handle design
  • Available with round or hex bushing
  • Will accommodate standard oval collar chisel and retainers
  • Comes with standard type retainer
  • JCO-3R-RJST same features as but with a saw tooth handle
SPECIFICATIONS
Stock No Model No Shank
Bushing
Style		 Shank
Bushing
Size		 Stroke
Length
(inch)		 Bore
Size
( inch)		 Blows per Minute Ft/lbs per
Blows
@90psi		 Air Consump.
(cfm)		 Air Inlet
(NPT/in)		 AirHose
(ID/in)		 Overall
Length (in)		 Net Weight
lbs ( kg )
557902 JCO-2R-RV Round .680 2 11/8 2,300 18 29 3/8 1/2 12 3/4 13 ( 5.89 )
557906 JCO-2H-RV Hex .580 2 11/8 2,300 18 29 3/8 1/2 12 3/4 13 ( 5.89 )
557903 JCO-3R-RV Round .680 3 11/8 2,200 25 31 3/8 1/2 14 3/8 14 ( 6.35 )
557907 JCO-3H-RV Hex .580 3 11/8 2,200 25 31 3/8 1/2 14 3/8 14 ( 6.35 )
557904 JCO-4R-RV Round .680 4 11/8 1800 42 33 3/8 1/2 16 15 ( 6.80 )
557908 JCO-4H-RV Hex .580 4 11/8 1800 42 33 3/8 1/2 16 15 ( 6.80 )

NOTE:All Units Operate at 90 psi.

We reserve the right to improve or withdraw the specification or products without prior notice.
