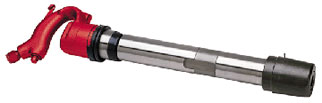

Jet Pneumatic Rivet Buster
|
SPECIFICATIONS | ||||||||||||
Stock No | Model No | Shank Bushing Style |
Shank Bushing Size |
Stroke Length ( inch ) |
Bore Size ( inch ) |
Blows per Minute | Ft/lbs per Blows @90psi |
Air Consump. (cfm) |
Air Inlet (NPT/in) |
AirHose (ID/in) |
Overall Length (in) |
Net Weight lbs ( kg ) |
557902 | JCO-2R-RV | Round | .680 | 2 | 11/8 | 2,300 | 18 | 29 | 3/8 | 1/2 | 12 3/4 | 13 ( 5.89 ) |
557906 | JCO-2H-RV | Hex | .580 | 2 | 11/8 | 2,300 | 18 | 29 | 3/8 | 1/2 | 12 3/4 | 13 ( 5.89 ) |
557903 | JCO-3R-RV | Round | .680 | 3 | 11/8 | 2,200 | 25 | 31 | 3/8 | 1/2 | 14 3/8 | 14 ( 6.35 ) |
557907 | JCO-3H-RV | Hex | .580 | 3 | 11/8 | 2,200 | 25 | 31 | 3/8 | 1/2 | 14 3/8 | 14 ( 6.35 ) |
557904 | JCO-4R-RV | Round | .680 | 4 | 11/8 | 1800 | 42 | 33 | 3/8 | 1/2 | 16 | 15 ( 6.80 ) |
557908 | JCO-4H-RV | Hex | .580 | 4 | 11/8 | 1800 | 42 | 33 | 3/8 | 1/2 | 16 | 15 ( 6.80 ) |
NOTE:All Units Operate at 90 psi.
We reserve the right to improve or withdraw the specification or products without prior notice.
