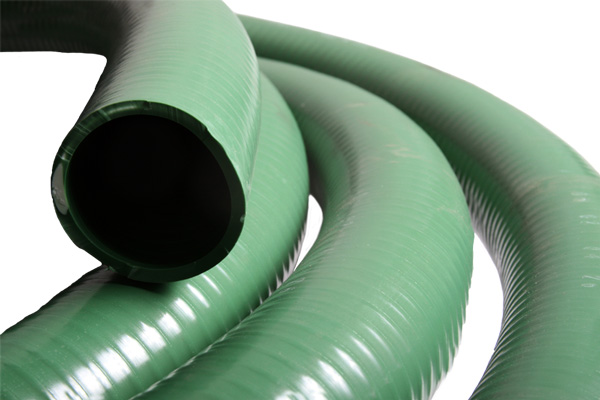

| Smooth bore flexible green PVC, reinforced with high density spiral of PVC fully embedded in the body of the hose. Very flexible and light in weight, making this hose easily handled. Not recommended for use in extreme heat or cold |
|
| SPECIFICATIONS | PVC SUCTION WATER HOSE |
| Hose Diameter inch ( mm ) | 1 1/2” ( 38.1 ) 2” ( 50.8 ) 2 ½” ( 63.5 ) 3” ( 76.2 ) 4” ( 101.6 ) 5” ( 127.0 ) 6” ( 152.4 ) 8” ( 203.2 ) |
| Max Hose length feet ( mts ) | 1 ½” to 6” = 100 ( 30.0 ) & 8” = 30 ( 9.10 ) |
| Fittings | Also available with male, female and nipples |
We reserve the right to improve or withdraw the specification or products without prior notice.
| Smooth rubber tube will not absorb water, reinforced with high multiple textiles piles and helix of high tensile steel wire. Tough black rubber cover resists abrasion and weather. | |
| SPECIFICATIONS | RUBBER SUCTION WATER HOSE |
| Hose Diameter inch ( mm ) | 1 1/2” ( 38.1 ) 2” ( 50.8 ) 2 ½” ( 63.5 ) 3” ( 76.2 ) 4” ( 101.6 ) 5” ( 127.0 ) 6” ( 152.4 ) 8” ( 203.2 ) 10” ( 254.0 ) 12” ( 304.8 ) |
| Max Hose length feet ( mts ) | 1 ½” to 4” = 100 ( 30.0 ) 6” = 30 ( 9.10 ) 8” to 12” = 25 ( 7.62 ) |
| Fittings | Also available with male, female and nipples |
We reserve the right to improve or withdraw the specification or products without prior notice.
