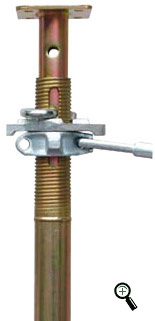

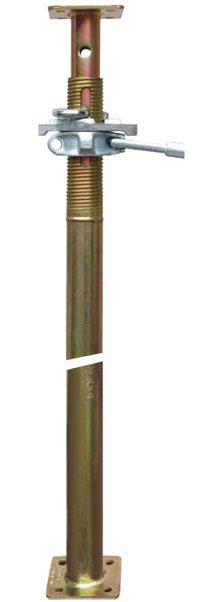

Super Heavy Duty Prop
  • We supply painted props, warm or cold zinc plated props.
  • Other dimensions could be made on request.
MEASURE
Feet ( mts )		 WEIGH
lb ( kg )		 PLATE
Inch ( mm )		 EXTERNAL TUBE
Inch ( mm ) 		INTERNAL TUBE
Inch ( mm )
4.92 – 8.53
( 1.50 – 2.60 )		 30.8
( 14 )		 472 x 4.72 x 0.31
( 120 x 120 x 8 )		 2.36 x 0.09
( 60 x 2.5 )		 1.89 x 0.15
( 48 x 4 )
5.57 – 9.84
( 1.70 – 3.00 )		 35.2
( 16 )		 472 x 4.72 x 0.31
( 120 x 120 x 8 )		 2.36 x 0.09
( 60 x 2.5 )		 1.89 x 0.15
( 48 x 4 )
6.56 – 11.81
( 2.00 – 3.60 )		 39.6
( 18 )		 472 x 4.72 x 0.31
( 120 x 120 x 8 )		 2.36 x 0.09
( 60 x 2.5 )		 1.89 x 0.15
( 48 x 4 )
7.54 – 13.45
( 2.30 – 4.10 )		 42.9
( 19.5 )		 472 x 4.72 x 0.31
( 120 x 120 x 8 )		 2.36 x 0.09
( 60 x 2.5 )		 1.89 x 0.15
( 48 x 4 )
7.87 – 14.76
( 2.40 – 4.50 )		 48.4
( 22 )		 472 x 4.72 x 0.31
( 120 x 120 x 8 )		 2.36 x 0.09
( 60 x 2.5 )		 1.89 x 0.15
( 48 x 4 ))
8.85 – 16.40
( 2.70 – 5.00 )		 57.2
( 26 )		 472 x 4.72 x 0.31
( 120 x 120 x 8 )		 2.36 x 0.09
( 60 x 2.5 )		 1.89 x 0.15
( 48 x 4 )
9.84 – 16.40
( 3.00 – 5.50 )		 61.6
( 28 )		 472 x 4.72 x 0.31
( 120 x 120 x 8 )		 2.36 x 0.09
( 60 x 2.5 )		 1.89 x 0.15
( 48 x 4 )

We reserve the right to improve or withdraw the specification or products without prior notice.
