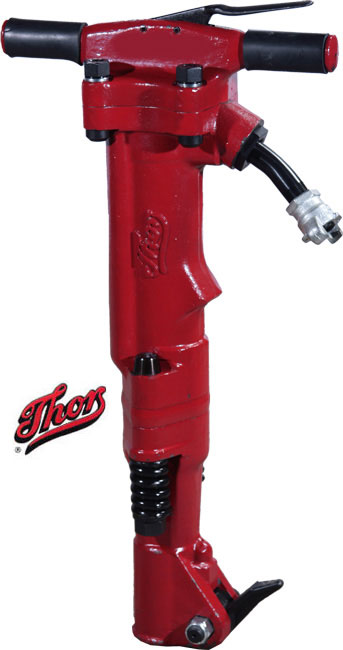

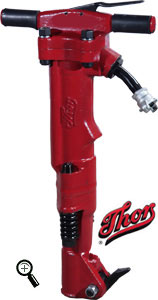

Thor Pneumatic Breakers Thor breakers, available in 30 60, 90 lb class, are TOOLS AS TOUGH AS THEIR NAME. The 30 lb class Thor 17 Breakers are light weight rugged tools designed for light to medium construction and plant maintenance work such as demolition of floors, pavement, masonry walls, black top and frozen dirt. The 17 is also an excellent choice for bridge deck demolition work. The Thor 234 60 lb class and Thor 125 90 lb. Class breakers are designed to deliver the performance and endurance necessary for a variety of heavy duty construction and plant maintenance applications, such as breaking rock, concrete, reinforce concrete, frozen earth and pavement Features Of All Thor Breakers
|
| SPECIFICATIONS | MODEL 17 BREAKER | MODEL 234 BREAKER | MODEL 125 BREAKER |
| Air Inlet | 3/8” NPT, male | 3/8” NPT, male | 3/8” NPT, male |
| Chuck Size | 7/8” x 3 1/4” , 1” x 1 1/4” | 1 1/4” x 6” , 1 1/8” x 6” | 1 1/4” x 6” , 1 1/8” x 6” |
| Bore x Stroke In ( mm ) | 1 3/4” x 3 3/8” - ( 44 x 86 mm ) | 2 5/8” x 6 1/16” - ( 66.67 x 154 mm ) | 2 5/8” x 6 1/16” - ( 66.67 x 154 mm ) |
| BPM | 1550 | 1400 | 1250 |
| Length In ( mm ) | 22 1/2” - ( 572 mm ) | 28 3/4” - ( 730 mm ) | 28 3/4” - ( 730 mm ) |
| C F M | 46 | 60 | 80 |
| Weight Lb ( Kg ) | 32 Lb - ( 14.5 Kg ) | 67 Lb - ( 30 Kg ) | 92 Lb - ( 42 Kg ) |
We reserve the right to improve or withdraw the specification or products without prior notice.
