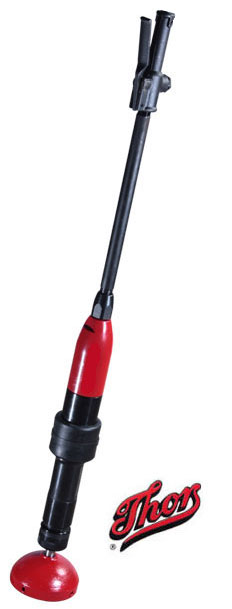

Thor Pneumatic Tamper

Thor 6T pneumatic Tamper (Old Model Thor 137) is a 36lb Class Tamper that has also “ Stood the test of time”. It’s slow ( 800 BPM ) powerful blows provide a well balanced, smooth operating tool that is easily guided by one person.

Thor designed to effectively compact soil around foundations and other structures and for compacting backfill in trenches and other construction holes requiring compaction.

Feature

  • High power to weight ratio, slow powerful blows quickly compact all types of blackfill material including clay and gravel
  • Heat treated cylinder and piston for long service life.
  • Hex head bolt clamp screw for quick and easy butt changes, no more stripped out screwdriver slots.
SPECIFICATIONS MODEL 6 T  Tamper (Old Model Thor 137)
Air Inlet 1/2” NPT, female
Taper 804 Taper
Bore x Stroke  In  ( mm ) 1 1/2” x 5 1/2” - ( 38 x 140 mm )
BPM 800
Length In ( mm ) 48 1/4” - ( 1226 mm )
C F M 38
Weight Lb ( Kg ) 36 Lb - ( 18 Kg )

We reserve the right to improve or withdraw the specification or products without prior notice.
