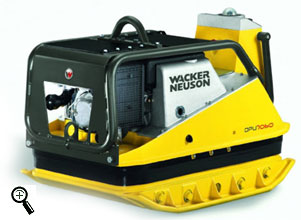

This DPU features a stand-by mode and intelligent technology. Thanks to the innovative design, the machine will immediately go into idle running mode and stop all travel movements when the operator lets go of the joy sticks. In combination with the award-winning Wacker Neuson infrared remote control, this machine uses line of sight for added safety. Wear and environmental pollution are reduced as a consequence. Another feature makes this DPU unique: it is the only machine in its class offering a virtual zero-loss V-belt technology.

  • Equipped with a low oil shutdown device and a cyclonic air cleaner. The engine is extremely resistant to high or low temperatures and dust and requires minimum service.
  • Innovative infrared remote control puts the machine in idle and stops the vibration if the operator comes too close to the sensing eye with the control box or loses visual contact with the machine.
  • When compared to hydraulically driven machines the V-belt technology provides a consistently high degree of efficiency, power and durability.
  • Retractable infrared sensing eye offers complete and effective protection against damages on the job site or during transport.
  • Ergonomic design and intuitive handling of the remote control offer straightforward and simple operation.
  • The DPU 7060F t version is additionally equipped with a continuous advance/cruise control function. This function allows the operator to enter the safety circle for a short time to manually assist the vibratory plate by way of the guide handle.

SPECIFICATIONS DPU 7060FT
Operating weight Lbs ( Kg ) 1296 - ( 587.85 )
Shipping weight Lbs ( Kg ) 1404 - ( 636.84 )
Operating width Inch ( cm ) 12.3 - ( 31.3 )
Machine height Inch ( cm ) 31.3 - ( 79.5)
Shipping size l x w x h Inch ( cm ) 33.8 x 39.2 x 49.6 - ( 85.9 x 99.6 x 126 )
Base plate thickness Inch ( cm ) 0.55 - ( 1.4 )
Centrifugal force Lbs ( kg ) 15377 - ( 6974.88 )
Vibration frequency vpm 3360
Max forward and reverse travel depending on soil Ft/min ( mt/min ) 82 - ( 24.9 )
Max compacted area depending on soil Ft²/h ( mt²/h ) 12900 - ( 1198.42 )
Max Gradeability on soil % 40%
Engine Type Air cooled, 4 cycle, single cylinder, Diesel Farymann 43F
Max power output Hp @ rpm 14.8 @ 3000
Rated power output Hp @ rpm 12.1 @ 2500
Fuel consumption qt/h ( lt/h ) 1.5 - ( 1.41 )
Tank capacity fuel qt ( lt ) 7.9 - ( 7.47 )
Max allowable tilt ° 15

We reserve the right to improve or withdraw the specification or products without prior notice.
