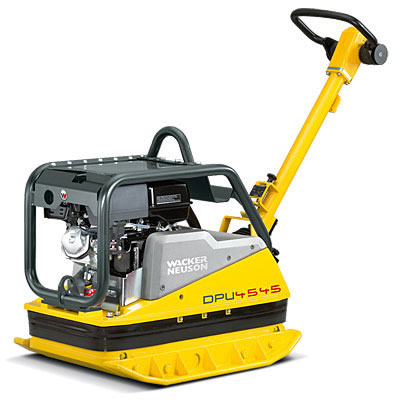

These new-generation vibratory plates offer maximum efficiency to meet the most stringent professional demands. The optimized two-shaft exciter technology, the power (centrifugal force) of which has been increased by 10 to 12.5 %, ensures the greatest possible compaction performance on almost all soils.

Thanks to faster advance travel, the surface capacity is greatly increased while the depth action remains the same. The new robust design also provides maximum machine stability. All told, this means greater productivity!

Increased forward travel speed for greater surface capacity
The same forward and reverse speed produces more consistent results, e.g. in plaster compaction
Reinforced covers and fastening elements for increased protection and thus lower maintenance costs
New signal tone generator notifies possible battery discharge
Long operating times thanks to low hand-arm vibrations

SPECIFICATIONS	DPU 4545HE	DPU 5545HE	DPU 6555HE
Operating weight Lbs ( Kg )	892.9 - ( 405 )	892.9 - ( 405 )	1049.9 - ( 476.22 )
Shipping weight Lbs ( Kg )	950 - ( 430.91 )	950 - ( 430.91 )	1048 - ( 475.36 )
Operating width Inch ( cm )	18.1 - ( 46 )	18.1 ( 46 )	28.0 - ( 71.1 )
Machine height Inch ( cm )	30.3 - ( 77 )	30.3 - ( 77 )	34.2 - ( 86.9 )
Operating height Adjustable guide handle Inch ( cm )	40.3 – 55.3 - ( 102.4 – 140.5 )	40.3 – 55.3 - ( 102.4 – 140.5 )	40.9 – 55.8 - ( 103.9 – 141.7 )
Shipping size l x w x h Inch ( cm )	30.7 x 59.5 x 41.7 - ( 78 x 151.1 x 105.9 )	30.7 x 59.5 x 41.7 - ( 78 x 151.1 x 105.9 )	30.7 x 59.5 x 41.7 - ( 78 x 151.1 x 105.9 )
Base plate thickness Inch ( cm )	0.5 - ( 1.0 )	0.5 - ( 1.0 )	0.5 - ( 1.0 )
Centrifugal force Lbs ( kg )	10116.4 - ( 4588.72 )	12364.4 - ( 2556.18 )	14612.6 - ( 6628.13 )
frequency Hz	69	69	69
Max forward and reverse travel depending on soil Ft/min ( mt/min )	82 - ( 24.9 )	88.6 - ( 27 )	91.9 - ( 28 )
Max compacted area depending on soil Ft²/h ( mt²/h )	9688 - ( 900 )	10463 - ( 972.04 )	12900 - ( 1198.94 )
Max Gradeability on soil %	38%	38%	38%
Engine Type	Air cooled, 4 cycle, single cylinder, Diesel Hatz 1D41S		Air cooled, 4 cycle, single cylinder, Diesel Hatz 1D81S
Max power output Hp @ rpm	9.4 @ 4000	9.4 @ 3600	14.1 @ 3600
Rated power output Hp @ rpm	6.6 @ 3000	7.2 @ 3000	9.3 @ 2880
Fuel consumption qt/h ( lt/h )	1.9 - ( 1.79 )	0.9 - ( 1.79 )	2 - ( 1.89 )
Tank capacity fuel qt ( lt )	5.3 - ( 5.01 )	5.3 - ( 5.01 )	6.3 - ( 5.96 )
Max allowable tilt °	30	30	30

We reserve the right to improve or withdraw the specification or products without prior notice.
