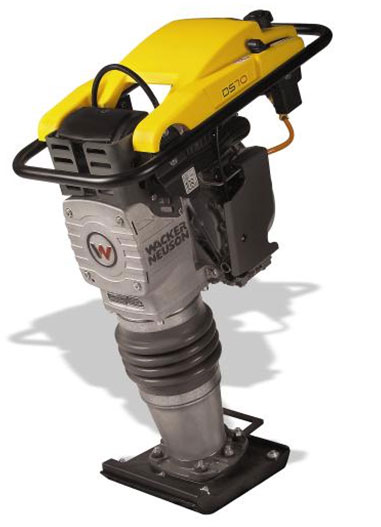

Wacker's DS70 diesel vibratory jumping jack tamper is built for extreme compaction jobs - Wacker DS70 diesel tampers offer maximum production, performance and durability while providing you the convenience of standardizing your diesel fleet. A well - balanced, light weight Wacker diesel tamper for easy handling and operation. The Wacker DS 70 diesel jumping jack is ideally suited for the most demanding compaction of cohesive, mixed and granular soils in confined areas.

  • A durable Yanmar diesel engine provides exceptional performance, fuel economy and long life.
  • The large capacity, corrosion proof fuel tank with self-cleaning, in-tank filter offers long life and minimum maintenance.
  • A unique three-stage air filtration system provides a virtually dust-free engine for longer life and improved durability. A filter minder tells the operator when the air filter needs to be changed.
  • Single lever controls engine starting, speed and stopping for operator convenience.
  • Exclusive noise reducing cover lowers the amount of engine and shoe noise transmitted to the operator.
  • The guide handle offers a highly engineered, built-in shock mount system to reduce HAV (hand-arm vibration) and improve operator comfort.
SPECIFICATIONS DS 70
Length x width s height Inch ( cm ) 28.5 x 14.6 x 39.4 - ( 72.4 x 37.1 x 100.1  )
Shoe size Inch ( cm ) 11 x 13 or 13 x 13 - ( 27.94 x 33.02  ) ( 33.02 x 33.02  )
Operating weight Lbs ( Kg ) 183 - ( 83.18  )
Shipping weight Lbs ( Kg ) 200 - ( 90.90  )
Shipping size l x w x h Inch ( cm ) 28.5 x 14.6 x 39.3 - ( 72.4 x 37.1 x 99.8 )
Stroke In ( cm ) Up to 2.78 - ( 7.1 )
Percussion rate Blows /min Up to 670
Travel speed Ft / min ( mts / min ) Up to 30 - ( 9.14 )
Compacted area 11 inch shoe 13 inch shoe Ft²/h ( mt²/h ) Up to 1698 ( 157.74 ) - Up to 1949 ( 181.06 )
Engine Type Air cooled, 4 cycle, single cylinder, Yanmar Diesel
Displacement in³ 12.9
Operating speed rpm 3450
Max rated power Hp @ rpm 4.1 @ 3450
Power rating specification SAE J1349, ISO 3046-1 IFN
Fuel consumption qt/h ( Lt/h ) 1.0 - ( 0.94 )
Fuel tank capacity  Qt/Lt 4.4 - ( 4.16 )
Power train Power train from engine via centrifugal clutch, gears, crank mechanism, connecting rod, guiding piston, double spring system, spring cylinder onto ramming shoe. Clutch engages when accelerating

We reserve the right to improve or withdraw the specification or products without prior notice.
