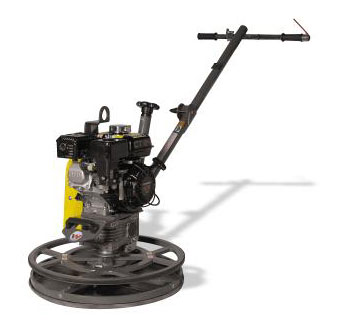

Edging trowel offers job site solution

Specifically designed for up to the edge finishing, this compact trowel eliminates hand work along walls. This machine improves productivity and quality while providing more ergonomics for the operator. Offering better floating and finishing capabilities along wall lines and obstacles, Wacker Neuson's edging trowel delivers an unmatched solution to the concrete job site.

  • Dynamically balanced design for easy and comfortable operation.
  • Low vibration handle reduces hand/arm vibration for reduced operator fatigue and increased production.
  • Standard foldable handle makes storage convenient while the standard central lifting eye eases transport.
  • Ideally suited for concrete finishing up to the edge and around obstacles.
SPECIFICATIONS CT 24-4A
Length x width s height inch ( cm ) 61 x 24 x 41 - ( 154.9 x 61 x 104.1  )
Operating weight lbs ( Kg ) 160 - ( 72.57  )
Shipping weight lbs ( Kg ) 183 - ( 83  )
Shipping size l x w x h inch ( cm ) 38.5 x 26.6 x 35.6 - ( 97.8 x 67.6 x 90.4 )
Storage size l x w x h inch ( cm ) 38 x 24 x 34 - ( 96.5 x 61 x 86.4 )
Trowel diameter inch ( cm ) 24 - ( 61 )
Number of blades 4
Finish blade size inch ( cm ) 9 x 4.75 - ( 22.9 x 12.1 )
Float blade size inch ( cm ) 23.8 - ( 60.5 )
Speed range  rpm 90 - 141
Pitch range  degrees 0 - 15
Engine type Air cooled, 4 cycle Gasoline engine Honda
Operating speed  rpm 3800
Max rated power hp@rpm 3.5@3600
Power rating specification SAE J1349
Piston displacement in³ 7.3
Fuel tank capacity qt ( lt ) 2.6 - ( 2.46 )
Fuel consumption qt/h ( lt/h ) 1.3 - ( 1.23 )

We reserve the right to improve or withdraw the specification or products without prior notice.
