These new-generation vibratory plates offer maximum efficiency to meet the most stringent professional demands. The optimized two-shaft exciter technology, the power (centrifugal force) of which has been increased by 10 to 12.5 %, ensures the greatest possible compaction performance on almost all soils. Thanks to faster advance travel, the surface capacity is greatly increased while the depth action remains the same. The new robust design also provides maximum machine stability. All told, this means greater productivity!
|

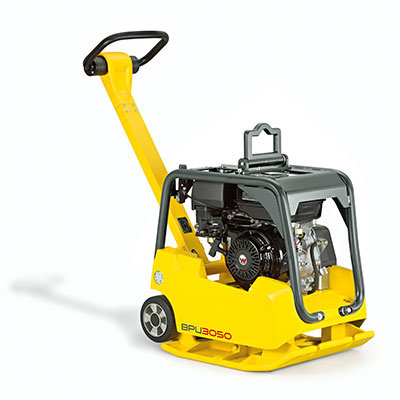

| SPECIFICATIONS | BPU 3050A | BPU 4045A | BPU 5545A |
| Operating weight Lbs ( Kg ) | 366 - ( 166.36 ) | 679 - ( 307.98 ) | 714.3 - ( 323.86 ) |
| Shipping weight Lbs ( Kg ) | 398 - ( 180.90 ) | 748 - ( 339.28 ) | 767 - ( 347.90 ) |
| Operating width Inch ( cm ) | 19.7 - ( 50.0 ) | 18.1 - ( 46.0 ) | 18.1 - ( 46.0 ) |
| Machine height Inch ( cm ) | 27.4 ( 69.6 ) | 28.5 - ( 72.4 ) | 28.5 - ( 72.4 ) |
| Operating height Adjustable guide handle Inch ( cm ) | 31.5 – 45.0 - ( 80.0 – 114.3 ) | 40.6 – 55.5 ( 103.1 – 141.0 ) |
40.6 – 55.5 ( 103.1 – 141.0 ) |
| Shipping size l x w x h Inch ( cm ) | 30.1 x 22.4 x 51.4 - ( 76.5 x 56.9 x 130.6 ) | 30.7 x 59.5 x 41.7 ( 78.0 x 151.1 x 105.9 ) |
30.7 x 59.5 x 41.7 ( 78.0 x 151.1 x 105.9 ) |
| Base plate thickness Inch ( cm ) | 0.4 - ( 1.0 ) | 0.5 - ( 1.3 ) | 0.5 - ( 1.3 ) |
| Centrifugal force Lbs ( kg ) | 6750 - ( 3068.18 ) | 8992.4 - ( 4078.88 ) | 12364.5 - ( 5608.44 ) |
| Vibration frequency Vpm | 5400 | 5800 | 5800 |
| Max forward and reverse travel depending on soil Ft/min ( mt/min ) |
68.9 - ( 21.0 ) | 78.7 - ( 23.98 ) | 78.7 - ( 23.98 ) |
| Max compacted area depending on soil Ft²/h ( mt²/h ) | 6781 - ( 629.97 ) | 9300 - ( 863.99 ) | 10463 - ( 972.04 ) |
| Max Gradeability on soil % | 30% | 34% | 34% |
| Engine Type | Air cooled, 4 cycle, single cylinder, Honda gasoline engine | ||
| Max power output Hp @ rpm | 9 @ 3600 | 8.9 @ 3600 | 12.9 @ 3600 |
| Rated power output Hp @ rpm | 2.6 @ 2800 | 6.2 @ 2600 | 7.2 @ 2600 |
| Fuel consumption qt/h ( lt/h ) | 1.2 - ( 1.13 ) | 1.7 - ( 1.6 ) | 2.1 - ( 1.98 ) |
| Tank capacity fuel qt ( lt ) | 5.3 - ( 5.01 ) | 5.6 - ( 5.3 ) | 6.4 - ( 6.05 ) |
| Max allowable tilt ° | 19 | 20 | 20 |
Power transmission from drive engine via centrifugal clutch and V – belt directly to exciter.
