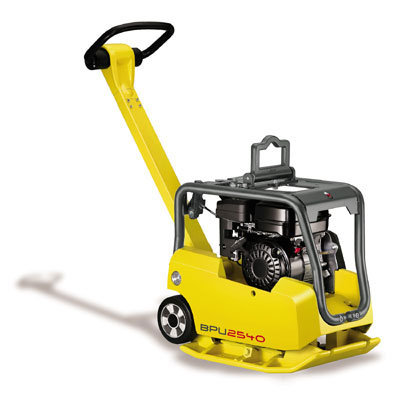

Versatile reversible plates ideal for compaction of interlocking paving stones, trenches, landscaping and maintenance. The only plates with a durable, integrated wheel set that provides for maximum built-in mobility. Single lever direction control provides for easy operation.

  • The unique, integrated wheel set simplifies the task of moving a reversible plate around the showroom, shop floor and job site.
  • An adjustable guide handle can be locked into a vertical position for easy transport and storage.
  • Heavy-duty frame features a central lifting point for easy on/off loading and placement of plate into trenches.
  • Tough ductile iron baseplate is extremely durable even under extreme conditions and provides for long service life.
  • Specially designed shockmount system offers a virtually vibration-free guide handle for increased operator comfort and reduced operator fatigue.
  • They are available either with an Honda engine or also with the technically superior Wacker Neuson WM 170 / 270 engine.
SPECIFICATIONS BPU 2540 BPU 2540A BPU 3050
Operating weight Lbs ( Kg ) 309 - ( 104.45 ) 366 - ( 166.36 ) 366 - ( 166.36 )
Shipping weight Lbs ( Kg ) 344 - ( 156.36 ) 398 - ( 180.90 ) 398 - ( 180.90 )
Operating width Inch ( cm ) 15.8 - ( 40.1 ) 15.8 - ( 40.1 ) 19.7 - ( 50.0 )
Machine height Inch ( cm ) 25.5 - ( 64.8 ) 25.5 - ( 64.8 ) 27.4 - ( 69.6 )
Operating height Adjustable guide handle Inch ( cm ) 31.5 – 45.0
( 80.0 – 114.3 )		 31.5 – 45.0
( 80.0 – 114.3 )		 31.5 – 45.0
( 80.0 – 114.3 )
Shipping size l x w x h Inch ( cm ) 29.9 x 18.5 x 50.8
( 75.9 x 47.0 x 129.0 )		 29.9 x 18.5 x 50.8
( 75.9 x 47.0 x 129.0 )		 30.1 x 22.4 x 51.4 - ( 76.5 x 56.9 x 130.6 )
Base plate thickness Inch ( cm ) 0.4 - ( 1.0 ) 0.4 - ( 1.0 ) 0.4 - ( 1.0 )
Centrifugal force Lbs ( kg ) 5625 - ( 2556.18 ) 5625 - ( 2556.18 ) 6750 - ( 3068.18 )
Vibration frequency Vpm 5400 5400 5400
Max forward and reverse travel depending on soil Ft/min ( mt/min ) 68.9 - ( 21.0 ) 68.9 - ( 21.0 ) 68.9 - ( 21.0 )
Max compacted area depending
on soil Ft²/h ( mt²/h )		 5425 - ( 503.99 ) 5425 - ( 503.99 ) 6781 - ( 629.97 )
Max Gradeability on soil % 30% 30% 30%
Engine Type Air cooled, 4 cycle, single cylinder, Wacker Neuson gasoline engine Air cooled, 4 cycle, single cylinder, Honda  gasoline engine Air cooled, 4 cycle, single cylinder, Wacker Neuson gasoline engine
Max power output Hp @ rpm 5.8 @ 4000 5.5 @ 3600 9.0 @ 4000
Rated power output Hp @ rpm 2.0 @ 2800 2.0 @ 2800 2.6 @ 2800
Fuel consumption qt/h ( lt/h ) 0.9 ( 0.85 ) 0.9 ( 0.85 ) 1.2 ( 1.13 )
Tank capacity fuel qt ( lt ) 3.8 ( 3.59 ) 3.9 ( 3.69 ) 6.5 ( 6.15 )
Max allowable tilt ° 25 20 25

Power transmission from drive engine via centrifugal clutch and V – belt directly to exciter.

We reserve the right to improve or withdraw the specification or products without prior notice.
