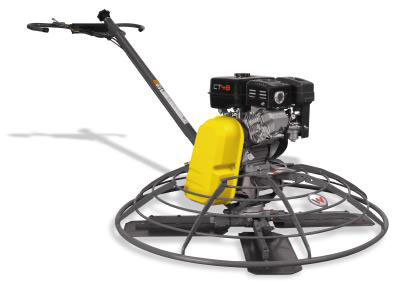

Trowels offer higher horsepower for floating applications

Designed and built with the most innovative technology, Wacker Neuson's high horsepower walk-behind trowels offer the same speed range as our standard trowel line, but with higher horsepower. These high horsepower units provide better torque for low speed floating and additional weight for those operators who prefer a heavier trowel (especially in hot, dry or windy conditions).

  • Dynamically balanced trowels (when blades are turning) offer nearly effortless operation and maximum control at all speeds with all types of blades including pan floats.
  • Patented gearbox brake, gyroscopic safety sensor and engine speed limiter provide triple protection for the operator and minmize a runaway handle situation.
  • Newly designed Pro-Shift® pitch control offers infintely variable transitions for smooth operation and instant change of blade pitch for rapidly changing surface conditions.
  • A choice of handle styles allows for user preference and maximum comfort. Available handles include a variety of combiniations including: Pro-Shift® or twist pitch, rigid or adjustable and folding. (Handles are sold separately).
SPECIFICATIONS CT 36-8A CT 36-9 CT 48-11A
Length x width s height inch ( cm ) 79 x 36 x 41
( 200.7 x 91.4 x 104.1  )
79 x 36 x 41
( 200.7 x 91.4 x 104.1
85 x 48 x 41
( 215.9 x 121.9 x 104.1  )
Operating weight lbs ( Kg ) 208 - ( 94.34  ) 199 - ( 90.26  ) 250 - ( 113.39  )
Shipping weight lbs ( Kg ) 245 - ( 111.13  ) 283 - ( 128.36  ) 300  - ( 136.07  )
Shipping size l x w x h inch ( cm ) 41 x 40 x 29
( 104.1 x 101.6 x 73.7 )
41 x 40 x 29
( 104.1 x 101.6 x 73.7
51 x 46 x 43
( 129.5 x 116.8 x 109.2 )
Trowel diameter inch ( cm ) 36 - ( 91.4 ) 36 - ( 91.4 ) 48 - ( 122 )
Number of blades 4 4 4
Speed range  rpm 60 - 125 60 - 125 60 - 125
Pitch range  degrees 0 - 30 0 - 30 0 - 30
Engine type Air cooled, 4 cycle Gasoline engine Honda Air cooled, 4 cycle Gasoline engine Wacker Neuson Air cooled, 4 cycle Gasoline engine Honda
Operating speed  rpm 3800 3800 3800
Max rated power hp@rpm 7.1@3600 9@4000 9.5@3600
Power rating specification SAE J1349 SAE J1349 SAE J1349
Piston displacement in³ 14.8 16.2 20.6
Fuel tank capacity qt ( lt ) 6.4 - ( 6.05 ) 6.4 - ( 6.05 ) 6.5 - ( 6.15 )
Fuel consumption qt/h ( lt/h ) 2.8 - ( 2.64 ) 2.6 - ( 2.46 ) 2.8 - ( 2.64 )

We reserve the right to improve or withdraw the specification or products without prior notice.
