Heavy-duty light towers deliver exceptional lighting

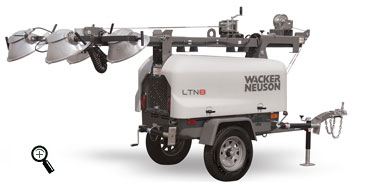

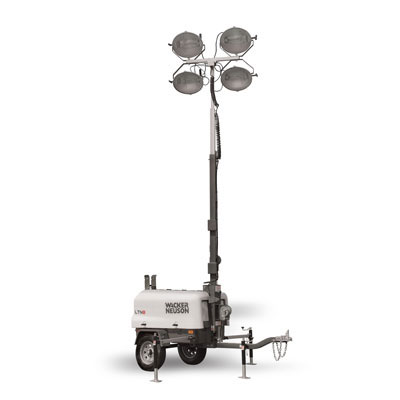

Trailer-mounted light towers feature a compact, narrow body design for cost-effective transport and storage. A 30-foot adjustable tower rotates 360-degrees for optimum lighting flexibility. Quiet operation, the quietest in its class with sound levels as low as 67 dB(A) at 23 feet, offers maximum versatility for almost any application. These units are ideally suited for illuminating general job sites, site prep, concrete pours, specialty events, parking lots, road work and bridge work.

  • Elliptical light fixtures offer more diffused, uniform light coverage for better job site illumination. Lights can be manually adjusted without tools for added convenience.
  • Lockable, impact resistant plastic doors are rust and dent proof. Full-length doors also provide maximum accessibility for easy servicing.
  • Four-point jack stands provide for easy leveling, stability on uneven terrain and superior wind stability.
  • Mast-mounted base winch can be cranked while the operator is standing (eliminates bending) for improved ergonomics and easy operation.
  • Stamped, one piece, steel skid tub provides superior strength and full protection from ground debris.
  • Large capacity fuel tank allows for up to 68 hours of continuous lighting/run time.
  • Fully equipped highway-ready trailer offers a ball hitch, 13-inch (33cm) tires, four tie-downs, lighting and chains.
  • Reliable diesel engine features glow plug preheat system for long service life and easier cold weather starting.
  • Control panel features an elapsed hour meter and a convenient receptacle with circuit breakers for additional power.

SPECIFICATIONS LTN 6L LTN 6C LTN 6K LTN 8K
Length x width x height in ( cm ) 180.4 x 59.3 x 73.2 - ( 458.2 x 150.6 x 185.9 )
Operating weight lbs ( Kg ) 1693 - ( 749.78  ) 1753 - ( 795.14  ) 1772 - ( 803.76  ) 1820 - ( 825.53  )
Shipping size l x w x h in ( cm ) 144.8 x 91.9 x 47 - ( 367.8 x 233.4 x 119.4 )
Shipping weight lbs ( Kg ) 1642 - ( 744.79  ) 1683 - ( 763.39  ) 1721 - ( 780.63  ) 1769 - ( 802.40  )
Maximum tower height ft ( mt ) 30 - ( 9.14 ) 30 - ( 9.14 ) 30 - ( 9.14 ) 30 - ( 9.14 )
Sound lever at 23 feet dB(A) 67 68 68 70
Output kW 6 6 6 6
Frequenzy Hz 60 60 60 60
Power factor Pf 1 1 1 1
Voltage regulation +/- % 6 6 6 6
Lamp type – Metal Halide 1~/3~ 4 x 1000 W 4 x 1000 W 4 x 1000 W 4 x 1000 W
Coverage Sq.ft @ 5 ft candles 12960 12960 12960 12960
Generator insulation Class H H H H
Speed rpm 1800 1800 1800 1800
Genertor type Brushless Brushless Brushless Brushless
Engine type 3 cylinder, liquid – cooled diesel engine
Lombardini
3 cylinder, liquid – cooled diesel engine
Caterpillar
3 cylinder, liquid – cooled diesel engine
Kubota
3 cylinder, liquid – cooled diesel engine
Kubota
Max rated power hp@rpm 13.4 @ 1800 15.3 @ 1800 13.1 @ 1800 15.4 @ 1800
Power rating specification Hp @ ISO 3046 IFN ISO 3046 IFN ISO 3046 IFN ISO 3046 IFN
Displacement in³ 62.7 67 61.1 68.5
Fuel tank capacity gal ( lit ) 32.5 - ( 123.02 ) 32.5 - ( 123.02 ) 32.5 - ( 123.02 ) 32.5 - ( 123.02 )
Fuel consumption ( at continuous load )
gal/h ( lit/h )
0.45 - ( 1.70 ) 0.44 - ( 1.66 ) 0.61 - ( 2.31 ) 0.80 - ( 3.02 )
Run time full load Hours 67 68 53.3 40.6
Ac receptables 120V-20 Amp duplex GFCI
120/240V-50 Amp twist lock
1 0 1 0 1 1 2 1

We reserve the right to improve or withdraw the specification or products without prior notice.
