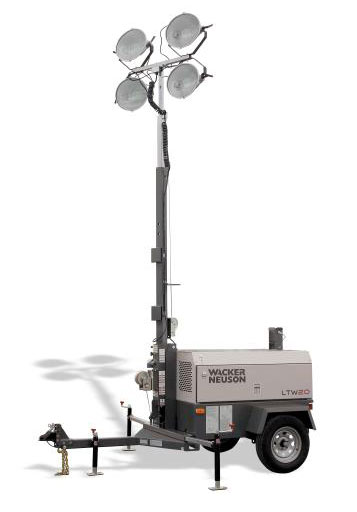

SPECIFICATIONS | LTW 6K | LTW 8K | LTW 20Z1 |
Length x width x height in ( cm ) | 177 x 75.5 x 74.5 - ( 449.6 x 191.8 x 189.2 | ||
Operating weight lbs ( Kg ) | 2890 - ( 1310.88 ) | 2930 - ( 1329.02 ) | 3345 - ( 1517.26 ) |
Shipping size l x w x h in ( cm ) | 177 x 75.5 x 74.5 - ( 449.6 x 191.8 x 189.2 | ||
Shipping weight lbs ( Kg ) | 2460 - ( 1115.83 ) | 2500 - ( 1133.98 ) | 2915 - ( 1322.22 ) |
Maximum tower height ft ( mt ) | 30 - ( 9.14 ) | 30 - ( 9.14 ) | 30 - ( 9.14 ) |
Sound lever at 23 feet dB(A) | 64 | 67 | 71 |
Output kW | 6 | 8 | 19.2 |
Frequenzy Hz | 60 | 60 | 60 |
Power factor Pf | 1 | 1 | 1 |
Voltage regulation +/- % | 6 | 6 | 0.2 |
Lamp type – Metal Halide 1~/3~ | 4 x 1000 W | 4 x 1000 W | 4 x 1000 W |
Coverage Sq.ft @ 5 ft candles | 12960 | 12960 | 12960 |
Generator insulation Class | H | H | H |
Speed rpm | 1800 | 1800 | 1800 |
Genertor type | Brushless | Brushless | Brushless |
Engine type | 3 cylinder, liquid – cooled diesel engine Kubota | 3 cylinder, liquid – cooled diesel engine Kubota | 3 cylinder, liquid – cooled diesel engine Isuzu |
Max rated power hp@rpm | 13.1 @ 1800 | 15.4 @ 1800 | 35.4 @ 1800 |
Power rating specification Hp @ | ISO 3046 IFN | ISO 3046 IFN | ISO 8528-1 - SAE J1995 |
Displacement in³ | 61.1 | 68.5 | 133 |
Fuel tank capacity gal ( lit ) | 60 - ( 227.12 ) | 60 - ( 227.12 ) | 60 - ( 227.12 ) |
Fuel consumption ( at continuous load ) gal/h ( lit/h ) | 0.61 - ( 2.31 ) | 0.80 - ( 3.02 ) | 1.80 - ( 6.81 ) |
Run time full load Hours | 98 | 75 | 33 |
Ac receptables
120V-20 Amp duplex GFCI 120/240V-30 Amp twist lock 120/240V-50 Amp Twist lock |
2 1 0 | 2 1 0 | 4 2 1 |
We reserve the right to improve or withdraw the specification or products without prior notice.
