Proven rugged design delivers an exceptional value

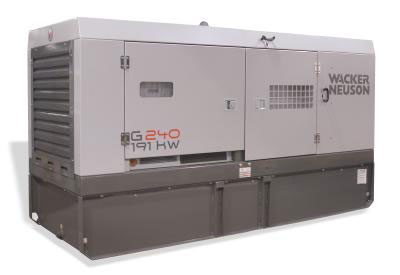

Durable, sound-attenuated diesel generators provide mobile prime power for larger construction, commercial, industrial, special event and emergency management applications where quiet, reliable power is needed. Designed around clean burning Tier III John Deere engines for maximum power and fuel efficiency, these units are EPA and CARB compliant. A digital controller monitors and protects the generator and engine while providing performance data on an easy to read LCD display. A large, skid mounted fuel tank provides up to a 30 hour (G 240) run time at full prime load, even without a trailer.

  • Quietest in-class generators are ideally suited for most sound-sensitive application.
  • Brushless alternators with separate excitation and AVR provide excellent motor starting and an enhanced ability to run non-linear loads.
  • Rated power up to 120°F (49°C) for optimum performance even in hot climates.
  • Easy voltage selection using a lockable voltage selector switch (G 180) or a unique reconnectable board (G 240) eliminates connection errors.
  • Standard environmentally friendly features include 115% fluid containment, crankcase oil vapor recovery system, no mess oil and radiator drain hoses and fast fuel fill system (50 gpm) that minimizes fuel spill potential.
  • Durable features like stainless steel external hardware and automotive corrosion treatment of select body parts provide a long-lasting, quality appearance ensuring a high resale value.
  • Deere engine diagnostic codes display on the LCD readout simplifying engine troubleshooting; fuel consumption and percentage load data is also displayed.
  • Automatic remote start capability is standard, ideal for temporary standby applications.
  • Many factory-installed options like cold weather package, battery chargers, etc. are available.
  • Heavy-duty, tandem-axle trailers with aluminum diamond plate fenders are road ready with DOT lighting, chains, height adjustable coupler and choice of surge or electric brakes.
  • Two-year bumper-to-bumper warranty with unlimited hours (separate engine warranty).

SPECIFICATIONS G 150 G 180 G 240
SKID MOUNTED
Length x width x height in ( cm ) 132 x 52 x 68
( 335.3 x 132.1 x 172.7 )
132 x 52 x 68
( 335.3 x 132.1 x 172.7 )
132 x 52 x 68
( 335.3 x 132.1 x 182.9 )
Operating weight lbs ( Kg ) 8362 - ( 3792.93  ) 8373 - ( 3797.92  ) 9594 - ( 4351.76  )
Dry/shipping weight lbs ( kg ) 6202 - ( 2803.17 ) 6213 - ( 2818.16 ) 6714 - ( 3045.41 )
GENERATOR WITH TRAILER
Length x width x height in ( cm ) 199 x 84.5 x 99
( 505.5 x 214.6 x 251.5 )
199 x 84.5 x 99
( 505.5 x 214.6 x 251.5 )
199 x 84.5 x 102
( 505.5 x 214.6 x 259.1 )
Operating weight lbs ( Kg ) 9796 - ( 4443.39  ) 9787 - ( 4440.21  ) 11088 - ( 5029.43  )
Prime output KW/kVA 121/151 143/179 191/238
Standby output kW/kVA 133/166 157/197 210/262
AC voltage 1~ 3~ Switchable
120, 127, 139, 240, 254, 277
208, 220, 240, 416, 440, 480
Switchable
120, 127, 139, 240, 254, 277
208, 220, 240, 416, 440, 480
Recconectable
( hi and low wye )
120, 127, 139, 240, 254, 277
208, 220, 240, 416, 440, 480
Frequency Hz 60 60 60
Power factor 1~/3~ 1.0/0.8 1.0/0.8 1.0/0.8
Voltage regulation no load to full load
steady state
+/- 1% +/- 0.2% +/- 1% +/- 0.2% +/- 1% +/- 0.2%
Insulation class H H H
Sound level at max load dB(A) 68 at 23 ft 70 at 23 ft 72 at 23 ft
Engine type John Deere John Deere John Deere
Displacement in³ 415 415 400
Operating speed rpm 1800 1800 1800
Rated stand by power
at rated speed Hp @
197 @ 1800 237 @ 1800 315 @ 1800
Power rating specification SAE J1995, ISO 8528-1 SAE J1995, ISO 8528-1 SAE J1995, ISO 8528-1
Fuel tank capacity gal ( lit ) 300 - ( 1135.62 ) 300 - ( 1135.62 ) 400 - ( 1514.16 )
Fuel consumption ( at continuous load )
gal/h ( lit/h )
8.8 - ( 33.31 ) 10.8 - ( 40.88 ) 13.5 - ( 51.10 )
Battery 12V/1000 CCA 12V/1000 CCA 12V/1000 CCA
Trailer hitch type 3 inch pintle 3 inch pintle 3 inch pintle
Ac receptables
1~ 120V-20 Amp GFL duplex
1~ 120/240V-50 Amp twist lock
2 3 2 3 2 3

We reserve the right to improve or withdraw the specification or products without prior notice.
