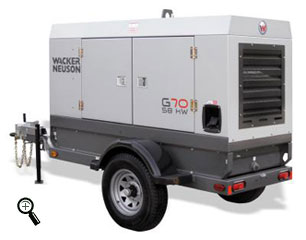

Heavy-duty mobile generator for reliable power

Compact, sound-attenuated generator provides single and three-phase power for construction, commercial, industrial and special event applications where quiet, reliable power is needed. A solid state digital information center monitors generator output and engine functions plus provides protection against engine and generator faults as well as standard automatic remote starting for standby applications. Skid-mounted units feature a fully integrated, large capacity fuel tank for long run times, even without a trailer.

  • Unit offers low noise, mobile power for virtually any sound-sensitive application. Utilizing proven technology and simple design, this quiet generator provides excellent reliability in the most demanding environments.
  • Brushless generator features a separate excitation winding for excellent motor starting and an enhanced ability to run non-linear loads.
  • Durable features like stainless steel external hardware and automotive corrosion treatment of select body parts provide a long-lasting, quality appearance ensuring a high resale value.
  • Generator control panel swings open as one complete unit for easy servicability.
  • Factory-installed customized options are available. These include, but are not limited to, a fluid containment system, an electronic governor and additional camlock panel.
  • Optional single-axle trailers are fully equipped and highway ready with DOT lighting, chains, height adjustable coupler and electric or hydraulic surge brakes

SPECIFICATIONS G 25 G 50 G 70
SKID MOUNTED
Length x width x height in ( cm ) 76.6 x 35 x 49.6
( 194.6 x 88.9 x 126 )
96 x 38 x 53
( 243.8 x 96.5 x 134.6 )
96 x 38 x 53
( 243.8 x 96.5 x 134.6 )
Operating weight lbs ( Kg ) 2325 - ( 1054.60  ) 3793 - ( 1720.47  ) 3964 - ( 1798.04  )
Dry/shipping weight lbs ( kg ) 1900 - ( 861.82 ) 3157 - 1431.99 ) 3328 - ( 1509.55 )
GENERATOR WITH TRAILER
Length x width x height in ( cm ) 130 x 59 x 69
( 330.20 x 149.9 x 175.3 )
155 x 59 x 69
( 393.7 x 149.9 x 175.3 )
155 x 67 x 73
( 393.7 x 170.2 x 185.4 )
Operating weight lbs ( Kg ) 2725 - ( 1236.03  ) 4768 - ( 2162.72  ) 4939 - ( 2240.29  )
Prime output KW/kVA 19.5/24.4 38/48 58/72
Standby output kW/kVA 20.4/25.5 42/53 63/79
AC voltage 1~ 3~ 120, 139, 240
208, 240, 460, 480
120, 139, 240
208, 240, 460, 480
120, 139, 240
208, 240, 460, 480
Frequency Hz 60 60 60
Power factor 1~/3~ 1.0/0.8 1.0/0.8 1.0/0.8
Voltage regulation no load to full load
steady state
+/- 1% +/- 0.2% +/- 1% +/- 0.2% +/- 1% +/- 0.2%
Insulation class H H H
Sound level at max load dB(A) 63 at 23 ft 66 at 23 ft 68 at 23 ft
Engine type Isuzu John Deere John Deere
Displacement in³ 133 275 275
Operating speed rpm 1800 1800 1800
Rated stand by power at rated speed Hp @ 32.1 @ 1800 67 @ 1800 99 @ 1800
Power rating specification SAE J1995, ISO 8528-1 SAE J1995, ISO 8528-1 SAE J1995, ISO 8528-1
Fuel tank capacity gal ( lit ) 60 - ( 227.12 ) 89 - ( 336.90 ) 89 - ( 336.90 )
Fuel consumption ( at continuous load ) gal/h ( lit/h ) 1.8 - ( 6.81 ) 3.3 - ( 12.49 ) 4.9 - ( 18.54 )
Battery 12V/650 CCA 12V/720 CCA 12V/720 CCA
Trailer hitch type 2 inch ball 3 inch pintle 3 inch pintle
Ac receptables
1~ 120V-20 Amp GFL duplex
1~ 120/240V-50 Amp twist lock
1~ 120/240V-30 Amp twist lock
2 1 1 2 2 1 2 2 1

We reserve the right to improve or withdraw the specification or products without prior notice.
