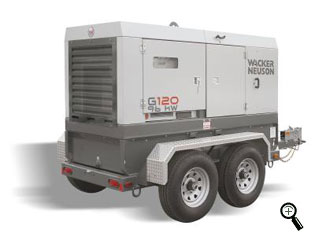

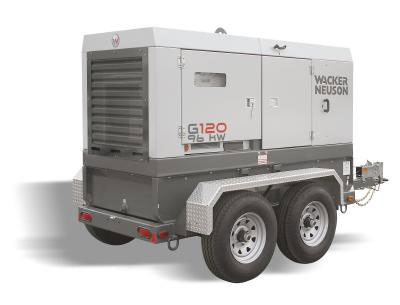

Heavy-duty mobile generator for reliable power

Compact, sound-attenuated generator provides single and three-phase power for construction, commercial, industrial and special event applications where quiet, reliable power is needed. A solid state digital information center monitors generator output and engine functions plus provides protection against engine and generator faults as well as standard automatic remote starting for standby applications. Skid-mounted units feature a fully integrated, large capacity fuel tank for long run times, even without a trailer.

  • Quietest in-class generators are ideally suited for most sound-sensitive application.
  • Brushless alternators with separate excitation and AVR provide excellent motor starting and an enhanced ability to run non-linear loads.
  • Rated power up to 120°F (49°C) for optimum performance even in hot climates.
  • Easy voltage selection using a lockable voltage selector switch.
  • Standard environmentally friendly features include 115% fluid containment, crankcase oil vapor recovery system, no mess oil and radiator drain hoses and fast fuel fill system (50 gpm) that minimizes fuel spill potential.
  • Durable features like stainless steel external hardware and automotive corrosion treatment of select body parts provide a long-lasting, quality appearance ensuring a high resale value.
  • Deere engine diagnostic codes display on the LCD readout simplifying engine troubleshooting; fuel consumption and percentage load data is also displayed.
  • Automatic remote start capability is standard, ideal for temporary standby applications.
  • Many factory-installed options like cold weather package, battery chargers, etc. are available.
  • Heavy-duty, dual-axle trailers with aluminum diamond plate fenders are road ready with DOT lighting, chains, height adjustable coupler and choice of surge or electric brakes.
  • Two-year bumper-to-bumper warranty with unlimited hours (separate engine warranty).

SPECIFICATIONS G 100 G 120
SKID MOUNTED
Length x width x height in ( cm ) 110 x 45 x 65 - ( 279.4 x 114.3 x 165.1 ) 110 x 45 x 65 - ( 279.4 x 114.3 x 165.1 )
Operating weight lbs ( Kg ) 6139 - ( 2784.63 ) 6165 - ( 2796.39  )
Dry/shipping weight lbs ( kg ) 4699 - ( 2131.43 ) 4725 - ( 2143.22 )
GENERATOR WITH TRAILER
Length x width x height in ( cm ) 176 x 80 x 90 - ( 447 x 203.2 x 228.6 ) 176 x 80 x 90 - ( 447 x 203.2 x 228.6 )
Operating weight lbs ( Kg ) 7503 - ( 3403.30 ) 7529 - ( 3415.09 )
Prime output KW/kVA 80/100 96/120
Standby output kW/kVA 88/110 106/132
AC voltage 1~ 3~ Switchable
120, 127, 139, 240, 254, 277
208, 220, 240, 416, 440, 480
Switchable
120, 127, 139, 240, 254, 277
208, 220, 240, 416, 440, 480
Frequency Hz 60 60
Power factor 1~/3~ 1.0/0.8 1.0/0.8
Voltage regulation no load to full load steady state +/- 1% +/- 0.2% +/- 1% +/- 0.2%
Insulation class H H
Sound level at max load dB(A) 69.4 at 23 ft 69 at 23 ft
Engine type John Deere John Deere
Displacement in³ 275 275
Operating speed rpm 1800 1800
Rated stand by power at rated speed Hp @ 133 @ 1800 158 @ 1800
Power rating specification SAE J1995, ISO 8528-1 SAE J1995, ISO 8528-1
Fuel tank capacity gal ( lit ) 200 - ( 757.08 ) 200 - ( 757.08 )
Fuel consumption ( at continuous load )
gal/h ( lit/h )
6.2 - ( 23.46 ) 7.4 - ( 28.01 )
Battery 12V/1000 CCA 12V/1000 CCA
Trailer hitch type 3 inch pintle 3 inch pintle
Ac receptables 1~ 120V-20 Amp GFL duplex 1~ 120/240V-50 Amp twist lock 2 3 2 3

We reserve the right to improve or withdraw the specification or products without prior notice.
