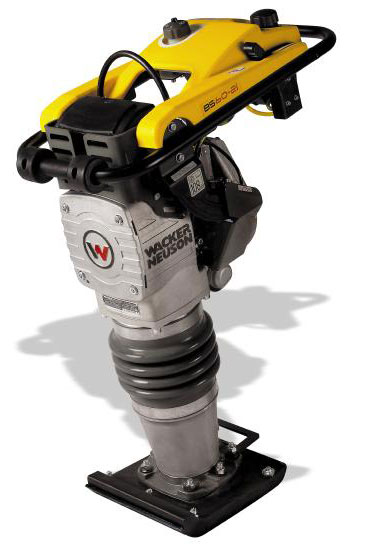

These Wacker upright rammers are powered by a WM80 engine that features a unique patented oil-injection system - A unique patented oil injection system provides reliable performance by eliminating spark plug fouling and carbon buildup. The no mix system is an added convenience for operators. Plus an amazing
fuel to oil ratio of 120:1 allows for longer and cleaner running times....up to 65 hours on a single tank of oil. A low oil shutdown switch prevents running the tamper without oil for trouble free operation.

Patented vented carb evacuates air from the fuel line for easy starting. An integrated fuel valve and gas lever also provide for simple operation and easy starting of these Wacker tampers by eliminating air in the fuel line.

Powered by Wacker's exclusive WM 80 engine, the only 2-cycle

engine specifically designed and built for an oil injected jumping jack and meets EPA emissions standards

Automatic shutoff feature will shut down the Wacker BS50, BS60 or BS70 tamper if left idling for an extended period of time, reducing emissions and carbon build-up.

Rugged Wacker rammer designed for the compaction of cohesive, mixed and granular soils in confined areas

SPECIFICATIONS BS 50-2i BS 60-2i BS 70-2i
Length x width s height Inch ( cm ) 26.5 x 13.5 x 37 - ( 67.5 x 34.29 x 93.98  ) 26.5 x 13.5 x 38
( 67.5 x 34.29 x 96.52  )

26.5 x 13.5 x 38
( 67.5 x 34.29 x 96.52  )

Shoe size Inch ( cm ) 11 x 13 - ( 27.94 x 33.02  ) 11 x 13 - ( 27.94 x 33.02  ) 11 x 13 - ( 27.94 x 33.02 ) or
13 x 13 - ( 33.02 x 33.02 )
Operating weight Lbs ( Kg ) 131 - ( 59.42  ) 145 - ( 65.77  ) 164 - ( 74.39 )
Shipping weight Lbs ( Kg ) 142 - ( 64.41 ) 157 - ( 71.21 ) 176 - ( 79.83 )
Shipping size l x w x h Inch ( cm ) 39 x 15 x 27 - ( 99.06 x 38.1 x 68.58 ) 39 x 15 x 27
( 99.06 x 38.1 x 68.58 )
39 x 15 x 27 - ( 99.06 x 38.1 x 68.58 )
Stroke In ( cm ) 2.5 - ( 6.35 ) 3.1 - ( 7.87 ) 2.6 - ( 6.6 )
Percussion rate Blows /min Up to 700 Up to 700 Up to 700
Travel speed Ft / min ( mts / min ) Up to 31 - ( up to 9.44 ) Up to 32 - ( up to 9.75 ) Up to 29 - ( up to 8.83 )
Compacted area 11 shoe 13 shoe Ft²/h ( mt²/h ) 1705 - ( 158.09 ) 1760 - ( 163.50 ) 1595 ( 148.18 ) - 1884 ( 175.02 )
Engine Type Air cooled, 2 cycle, single cylinder, WM 80 gasoline engine
Displacement in³ 4.9 4.9 4.9
Operating speed rpm 4400 4400 4400
Max rated power Hp @ rpm 2.2 @ 4400 2.4 @ 4400 2.7 @ 4400
Power rating specification 80 / 1269 / EEC, ISO 3046-1
Fuel to oil ratio 120 : 1 120 : 1 120 : 1
Fuel consumption qt/h ( lt/h ) 1.1 ( 1.05 ) 1.3 ( 1.23 ) 1.4 ( 1.32 )
Fuel tank capacity Qt ( lt ) 3.2 ( 3 ) 3.2 ( 3 ) 3.2 ( 3 )
Oil tank capacity  Qt ( lt ) 0.75 ( 0.71 ) 0.75 ( 0.71 ) 0.75 ( 0.71 )
Power train Power train from engine via centrifugal clutch, gears, crank mechanism, connecting rod, guiding piston, double spring system, spring cylinder onto ramming shoe. Clutch engages when accelerating

We reserve the right to improve or withdraw the specification or products without prior notice.
