Rugged and powerful generators for the most demanding jobsites

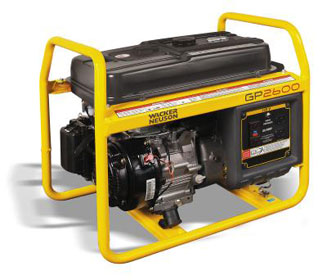

Designed for construction rental and other demanding applications, these high performance, portable generators deliver unmatched tool starting and voltage regulation in a rugged, compact package. Built the Wacker Neuson way, with heavy-duty frames and premium components to provide long, trouble-free operation even in abusive environments. Ideal for powering high starting amperage tools such as compressors, grinders, fusion welders, saws, pressure washers as well as all of your Wacker Neuson electric- powered pumps, breakers, drills, concrete vibrators, etc.

Best in class tool starting and voltage regulation due to unique step-start generator technology with AVR (automatic voltage regulation) and separate excitation winding.
Unique GFCI (neutral bonded to ground) sensor system eliminates common GFI outlet failures while offering personal protection on all receptacles including 240 Volt. Meets the latest NEC and OSHA jobsite standards.
Full wrap-around frame with dual cross-member support, high impact polyethylene fuel tank and heavy duty shock-mounting combine to provide outstanding impact protection.
A super quiet muffler allows for versatile operation.
Unique auto-idle control with time delay system automatically reduces the engine to a low speed reducing fuel consumption, noise and wear.
The folding central lifting eye and integrated wheel kit make these compact generators easy to transport and store.
Full power switch for maximum 120V power output or 120V/240V power.
Available with the high performance Wacker Neuson OHC engine (on GP2600 and GP4000) or Honda OHV engine, both feature low oil shutdown.

SPECIFICATIONS	GP 2500A*	GP 2600	GP 3800A
Length x width x height in ( cm )	22.2 x 17 x 17.5 - ( 55.9 x 43.2 x 44.5 )	24.2 x 17 x 21.5 - ( 61.5 x 43.2 x 54.6 )	27 x 21 x 21.2 - ( 68.6 x 53.3 x 53.8 )
Dry weight lbs ( Kg )	98 - ( 44.45 )	105 - ( 47.62 )	160 - ( 72.57 )
Shipping size l x w x h in ( cm )	23.2 x 17.6 x19.5 - ( 58.9 x 44.7 x 49.5 )	25.2 x 17.7 x 23.5 - ( 64 x 45 x 59.7 )	28 x 21.5 x 23.2 - ( 71.1 x 54.6 x 58.9 )
Shipping weight lb ( kg )	103 - ( 46.72 )	111 - ( 50.34 )	165 - ( 74.84 )
Maximum output W	2500	2600	3800
Continuous output W	2250	2250	3400
Continuous AC amps A	18.8	18.8	28.3/14.2
AC voltage V	120	120	120/240
AC circuit breaker amps A	20	20	16
Frequency Hz	60	60	60
Phase Ø	1	1	1
Power factor Pf	1	1	1
Engine type	Air cooled, 4 cycle, single cylinder, gasoline engine Honda	Air cooled, 4 cycle, single cylinder, gasoline engine Wacker Neuson	Air cooled, 4 cycle, single cylinder, gasoline engine Honda
Starting system	Recoil	Recoil	recoil
Displacement in³	10	10.3	14.8
Operating speed rpm	3600	3600	3600
Max rated power hp @ rpm	4.8 @ 3600	5.7 @ 4000	7.1 @ 3600
Power rating specification	SAE J1349	SAE J1349	SAE J1349
Fuel tank capacity gal ( lit )	3 - ( 11.35 )	4 - ( 15.14 )	5.2 - ( 19.68 )
Running time/full load hrs	7	10.2	8
Ac receptables	2-125V 20 A duplex GFCI	2-125V 20 A duplex GFCI	2-125V, 20A duplex GFCI 1-125V, 30A Twist lock 1-125/250V, 20A Twist lock

We reserve the right to improve or withdraw the specification or products without prior notice.
