Application

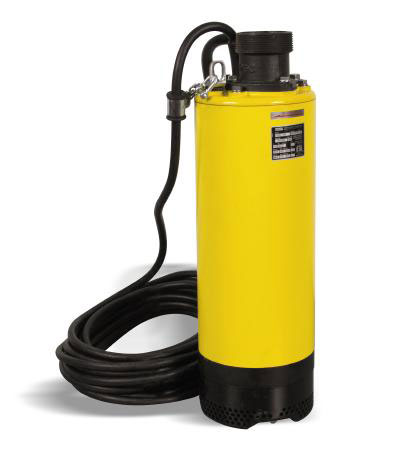

Lightweight, portable, single phase submersible pumps are designed to handle water and solids. Built for the demands of construction, mining, municipality and farm applications.

  • These high performance single-phase submersible pumps are capable of handling solids up to .4 inches, ideal for job sites needing fast dependable dewatering.
  • Lightweight, compact design with heavy-duty, strain relief power cord offers a highly durable pump that is still easy to transport and install.
  • Built-in thermal protection prevents motor damage due to impeller blockage, reducing service repairs.
  • Silicon carbide-faced double mechanical seals run in an isolated oil-filled cavity, allowing for seal lubrications, cooling and overall motor protection.
  • Preliminary v-ring (lip seal) shields the mechanical seal from abrasive wear due to suspended debris in pumping fluid.
  • Oil lifter provides lubrication to seal faces during operation minimizing the risk of seal failure due to overheating.
  • PSW3 features slim line design allowing it to fit down an 8-inch pipe for well point applications.
SPECIFICATIONS PS3 1500 PSW3 1500 PSW3 1500
Discharge diameter in ( cm ) 3 - ( 7.6 ) 3 - ( 7.6 ) 3 - ( 7.61 )
Dimensions  l x w x h in ( cm ) 9.5 x 9.5 x 22.5 - ( 24.1 x 24.1 x 57.2 ) 7.4 x 7.4 x 23.4 - ( 18.8 x 18.8 x 59.4 ) 9.5 x 9.5 x 22.5 - ( 24.1 x 24.1 x 57.2 )
Weight lb ( kg ) 63.5 - ( 28.8 ) 88 - ( 39.91 ) 78 - ( 35.38 )
Shipping weight lb ( kg ) 78 - ( 35.38 ) 88 - ( 39.91 ) 78 - ( 35.38 )
Shipping size  l x w x h in ( cm ) 13.5 x 13 x 28 - ( 34.3 x 33 x 71.1 ) 18.8 x 10.5 x 10.3 - ( 47.8 x 26.7 x 26.2 ) 18.8 x 10.5 x 10.3 - ( 47.8 x 26.7 x 26.2 )
Maximum head ft ( mt ) 69 - ( 21.03 ) 69 - ( 21.03 ) 85- ( 25.90 )
Max discharge gal/min ( lt/min ) 111 - ( 420.18 ) 111 - ( 420.18 ) 130 - ( 492.10 )
Max pressure psi 30 30 37
Solid size capacity in ( cm ) 0.3 - ( 0.8 ) 0.2 - ( 0.5 ) 0.3 - ( 0.8 )
Motor type Single phase 60 Hz Single phase 60 Hz Single phase 60 Hz
Voltage 110-220V 110-220V 220V
Current ( full loaded start @ 110V ) A 23/136 26.2/- N/A
Current ( full loaded start @ 220V ) A 11.5/68 13.2/- 13/70
Speed rpm 3440 3480 3465
Power hp 2 2 3
Cable length ft ( mt ) 32 - ( 9.75 ) 49 - ( 14.93 ) 32 - ( 9.75 )
Cable size Awg 12 12, 14 12
Impeller material Ductile iron Ductile iron Ductile iron
Impeller type Semi-open Semi-open Semi-vortex

Float available for water pump.

We reserve the right to improve or withdraw the specification or products without prior notice.
