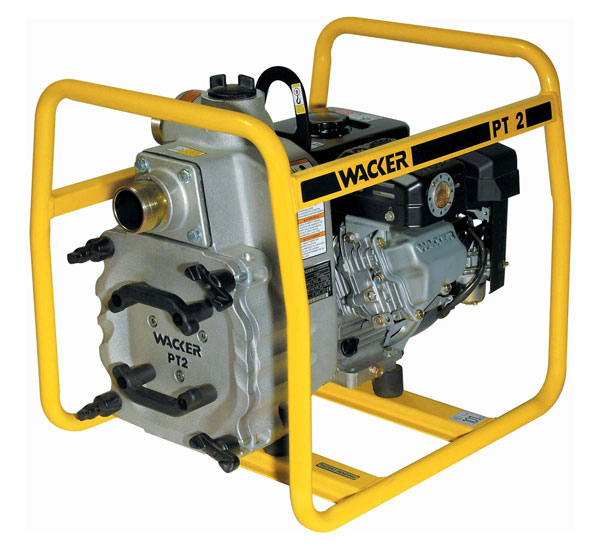

High performance centrifugal trash pumps designed to keep your jobsite dry

Wacker Neuson's centrifugal trash pumps have proven themselves on jobsites around the world. With an optimized impeller design and built-in contractor friendly features, this line of trash pumps has redefined the quality and durability standards of self-priming centrifugal trash pumps

  • Self-priming high performance pump capable of handling solids up to 1 inch, ideal for most jobsites that require fast dewatering on command.
  • Hardened ductile iron impeller and volute with a patented volute insert provides a rugged, easy to maintain pump that will stay on the job longer.
  • High strength, lightweight aluminum housing, compact with easy access, allows extra years of trouble-free operation.
  • Radial flow design produces high volume and head for superior pump performance.
  • Quality components such as carbon ceramic mechanical seals for extra long life.
SPECIFICATIONS PT 2 PT 2A PT 2H
Suction & discharge diameter in ( cm ) 2 - ( 5.1 ) 2 - ( 5.1 ) 3 - ( 7.6 )
Dimensions  l x w x h in ( cm ) 21.7 x 18.3 x 19.6 - ( 55.1 x 46.5 x 49.8 ) 21.7 x 18.3 x 19.6 - ( 55.1 x 46.5 x 49.8 ) 23.2 x 19.4 x 20 - ( 58.9 x 49.3 x 50.8 )
Weight lb ( kg ) 96 - ( 43.54 ) 96 - ( 43.54 ) 131 - ( 59.42 )
Shipping weight lb ( kg ) 109 - ( 49.44 ) 109 - ( 49.44 ) 144 - ( 65.31 )
Shipping size  l x w x h in ( cm ) 22.3 x 18.9 x 21.2 - ( 56.6 x 48 x 53.8 ) 22.3 x 18.9 x 21.2 - ( 56.6 x 48 x 53.8 ) 22.3 x 18.9 x 21.2 - ( 56.6 x 48 x 53.8 )
Maximum head ft ( mt ) 106 - ( 32.30 ) 106 - ( 32.30 ) 106 - ( 32.30 )
Max discharge gal/min ( lt/min ) 210 - ( 794.93 ) 210 - ( 794.93 ) 210 - ( 794.93 )
Max suction lift ft ( mt ) 25 - ( 7.62 ) 25 - ( 7.62 ) 25 - ( 7.62 )
Solid size capacity in ( cm ) 1 - ( 2.54 ) 1 - ( 2.54 ) 1 - ( 2.54 )
Engine type Air cooled 4 cycle single cylinder gasoline engine Wacker Neuson Air cooled 4 cycle single cylinder gasoline engine Honda Air cooled 4 cycle single cylinder Diesel Hatz
Displacement in³ 10.3 9.9 14.2
Operating speed rpm 3500 3500 3500
Max rated power hp @ rpm 5.7@4000 4.8@3600 4.6@3600
Power rating specification SAE J1349 SAE J1349 ISO 3046 IFN
Fuel consumption qt/hr ( lt/hr ) 1.6 - ( 1.32 ) 19 - ( 1.79 ) 1.2 - ( 1.13 )
Fuel capacity qt/hr ( lt/hr ) 3.8 - ( 3.59 ) 3.8 - ( 3.59 ) 3.2 - ( 3.02 )

We reserve the right to improve or withdraw the specification or products without prior notice.
