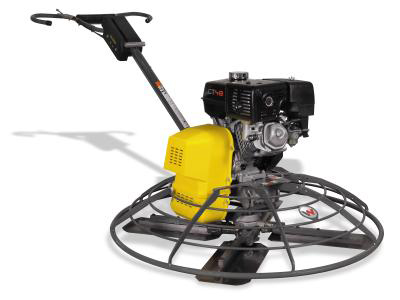

Float and finish, faster than ever, with variable speed power trowels

Wacker Neuson's variable speed trowels will get the job done.....fast. A variable transmission system provides wide speed range (20-200 rpm) for low-speed, high torque floating through high-speed burnishing all in one machine. The large pitch-control range offers complete control over finishing and floating for application versatility during operation.

  • Dynamically balanced trowels (when blades are turning) offer nearly effortless operation and maximum control at all speeds with all types of blades including pan floats.
  • Patented gearbox brake, gyroscopic safety sensor and engine speed limiter provide triple protection for the operator and minmize a runaway handle situation.
  • Newly designed Pro-Shift® pitch control offers infintely variable transitions for smooth operation and instant change of blade pitch for rapidly changing surface conditions.
  • A choice of handle styles allows for user preference and maximum comfort. Available handles include a variety of combiniations including: Pro-Shift® or twist pitch, rigid or adjustable and folding. (Handles are sold separately).
SPECIFICATIONS CT 36-8A-V CT 36-9-V CT 48-13A-V
Length x width s height inch ( cm ) 79 x 36 x 41
( 200.7 x 91.4 x 104.1  )
79 x 36 x 41
( 200.7 x 91.4 x 104.1
85 x 48 x 41
( 215.9 x 121.9 x 104.1  )
Operating weight lbs ( Kg ) 208 - ( 94.34  ) 199 - ( 90.26  ) 268 - ( 121.56  )
Shipping weight lbs ( Kg ) 245 - ( 111.13  ) 238 - ( 107.95  ) 318  - ( 144.24  )
Shipping size l x w x h inch ( cm ) 41 x 40 x 29
( 104.1 x 101.6 x 73.7 )
41 x 40 x 29
( 104.1 x 101.6 x 73.7
51 x 46 x 43
( 129.5 x 116.8 x 109.2 )
Trowel diameter inch ( cm ) 36 - ( 91.4 ) 36 - ( 91.4 ) 48 - ( 122 )
Number of blades 4 4 4
Speed range  rpm 20 - 200 20 - 200 20 - 200
Pitch range  degrees 0 - 30 0 - 30 0 - 30
Engine type Air cooled, 4 cycle Gasoline engine Honda Air cooled, 4 cycle Gasoline engine Wacker Neuson Air cooled, 4 cycle Gasoline engine Honda
Operating speed  rpm 3800 3800 3800
Max rated power hp@rpm 7.1@3600 9@4000 11@3600
Power rating specification SAE J1349 SAE J1349 SAE J1349
Piston displacement in³ 14.8 16.2 20.6
Fuel tank capacity qt ( lt ) 6.4 - ( 6.05 ) 6.4 - ( 6.05 ) 6.5 - ( 6.15 )
Fuel consumption qt/h ( lt/h ) 2.8 - ( 2.64 ) 2.6 - ( 2.46 ) 2.8 - ( 2.64 )

We reserve the right to improve or withdraw the specification or products without prior notice.
