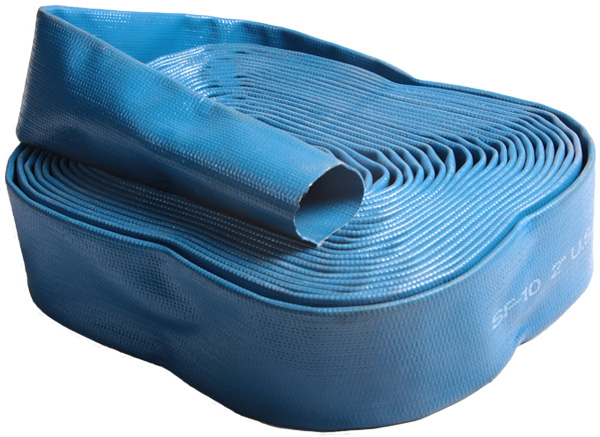

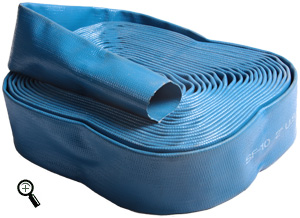

| Blue PVC with textile reinforcement for low pressure, open and service. Used wherever a lightweight, economical discharge hose is required. | |
| SPECIFICATIONS | PVC DISCHARGE WATER HOSE |
| Hose Diameter inch ( mm ) | 1 1/2” ( 38.1 ) 2” ( 50.8 ) 2 ½” ( 63.5 ) 3” ( 76.2 ) 4” ( 101.6 ) 6” ( 152.4 ) 8” ( 203.2 ) 10” ( 254.0 ) 12” ( 304.8 ) 16” ( 406.4 ) |
| Max working pressure psi | 1 ½” to 2” = 80 psi 2 ½” = 65 psi 3” = 80 psi 4” = 70 psi 6” = 60 psi 8” to 12” = 35 psi 16” = 30 psi |
| Max Hose length feet ( mts ) | 1 ½” to 8” = 300 ( 90.0 ) 10” to 12” = 100 ( 30.0 ) 16” = 25 ( 7.62 ) |
| Fittings | Also available with male, female and nipples |
We reserve the right to improve or withdraw the specification or products without prior notice.
| Red PVC with textile reinforcement. For use where higher pressure is needed. | |
| SPECIFICATIONS | PVC DISCHARGE WATER HOSE |
| Hose Diameter inch ( mm ) | 1 1/2” ( 38.1 ) 2” ( 50.8 ) 2 ½” ( 63.5 ) 3” ( 76.2 ) 4” ( 101.6 ) 6” ( 152.4 ) 8” ( 203.2 ) |
| Max working pressure psi | 1 ½” to 6” = 150 psi 8” = 100 psi |
| Max Hose length feet ( mts ) | 1 ½” to 8” = 300 ( 90.0 ) |
We reserve the right to improve or withdraw the specification or products without prior notice.
