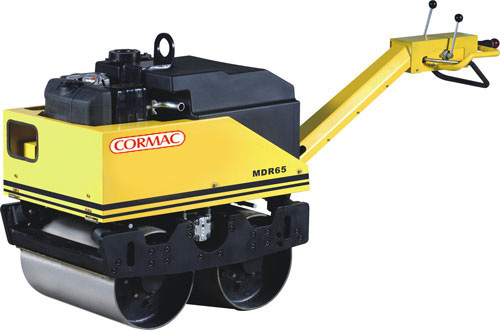

Double Drum Model MDR65L

The model MDR65L Walk-behind Roller and hydrostatic transmission for optimum performance on bridge abutments, larger sidewalks, parking lots and road shoulders. It is ideal for confined area compaction, in trenches and general asphalt patching and repair.

Feature

  • Dead-man control lever offers reversing protection
  • Mechanical parking brake.
  • Anti vibration controls ensure non fatiguing and low hands arm vibration for the operator.
  • Ergonomically designed are conveniently positioned to ensure speed, control.
  • Vibration is controlled by easy to reach on and off switch in speed controlled hand lever.
  • Two scrapper bars on each drum ensure a clean drum when working on asphalt.
  • Easy access to front mounted diesel engine.
  • A fully hydraulic drive system consist of hydraulic pump and hydraulic motors provide a infinitely variable working speed for travel and vibration, eliminating regular maintenance and adjustments that chain roller require.
  • Unique clutch – pump drive system provides easy cold weather starting and allows for no-load starting engine
SPECIFICATIONS MDR65L MDR65A
Engine Single cylinder 4 cycle air cooled, diesel Single cylinder 4 cycle air cooled, diesel
Engine Type Diesel Lombardini 15LD440 Diesel Hatz 1B40
Power Hp ( Kw ) 11 - ( 8.1   ) 10.2 - ( 7.5  )
Operation mass Lbs ( Kg ) 1583 - ( 718 ) 1590 - ( 721 )
Frequency VPM ( Hz ) 3300 - ( 55 )
Drum diameter inch ( mm ) 25.6 x Ø 16 - ( 650 x Ø 404 )
Centrifugal Force kN 21
Travel speed  km / h 0 – 3.6
Water Tank capacity Gal ( Lts ) 17 - ( 65 )

We reserve the right to improve or withdraw the specification or products without prior notice.
