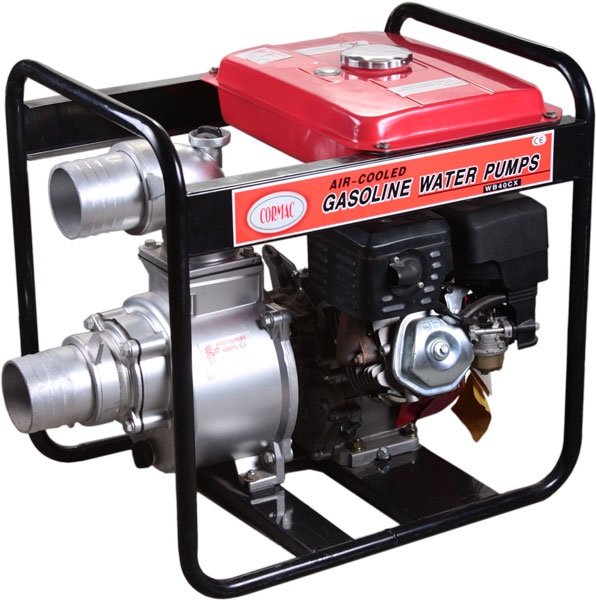

General Purpose Gasoline Water Pump
 |
|
||||
|
|
||||
|
General Purpose Gasoline Water Pump
| SPECIFICATIONS | MODEL WB15 | MODEL WB20 | MODEL WB30 | MODEL WB40 | |
| ENGINE | Model | Kapa | Kapa 168F | Kapa 168F | Kapa 177F |
| Displacement ml | 97.7 | 163 | 163 | 270 | |
| Type | Single cylinder, 4 stroke | Single cylinder, 4 stroke | Single cylinder, 4 stroke | Single cylinder, 4 stroke | |
| Max output hp/rpm | 2.5 hp / 3600 rpm | 5.5 hp / 3600 rpm | 5.5 hp / 3600 rpm | 9 hp / 3600 rpm | |
| Start mode | Recoil | Recoil | Recoil | Recoil | |
| Fuel tank capacity lts ( gal ) | 1.3 - ( 0.34 ) | 3.6 - ( 0.95 ) | 3.6 - ( 0.95 ) | 12.5 - ( 3.3 ) | |
| Fuel continuos time /hour | 3 | 3 | 3 | 3 | |
| PUMP | Outlet mm ( Inch ) | 37.5 - ( 1.5” ) | 50 - ( 2” ) | 80 - (3” ) | 100 - ( 4” ) |
| Max capacity lit/min ( gal/min ) | 196 - (52 ) | 550 - ( 145 ) | 1000 - ( 264 ) | 1800 - ( 475 ) | |
| Total head mts ( feet ) | 5 - ( 16 ) | 8 - ( 26.24 ) | 8 - ( 26.24 ) | 8 - ( 26.24 ) | |
| Suction lift mts ( feet ) | 20 - ( 65.6 ) | 28 - ( 91.8 ) | 28 - ( 91.8 ) | 28 - ( 91.8 ) | |
| UNIT | Dimensions Lx W x H mm ( Inch ) | 400 x 270 x 360 ( 15.8 x 10.7 x 14.2 ) |
520 x 400 x 490 ( 20.47 x 15.74 x 19.29 ) |
520 x 400 x 490 ( 20.47 x 15.74 x 19.29 ) |
630 x 460 x 600 ( 24.8 x 18.2 x 24 ) |
| Dry weight kg ( lb ) | 12 - ( 25 ) | 28 - ( 62 ) | 32 - ( 71 ) | 40 - ( 88.5 ) |
We reserve the right to improve or withdraw the specification or products without prior notice.
