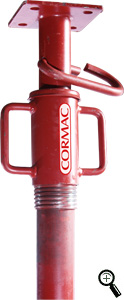

Heavy Duty Prop
  • We supply painted props, warm or cold zinc plated props.
  • We supply male, female threads & hooks (parts for props).
  • Other dimensions could be made on request.
MEASURE
Feet ( mts )		 WEIGH
lb ( kg )		 MAX CAPACITY
lb ( kg )		 PLATE
Inch ( mm )		 EXTERNAL TUBE
Inch ( mm ) 		INTERNAL TUBE
Inch ( mm )
5.90 – 10.50
( 1.80 – 3.20 )		 22
( 10 )		 2596
( 1180 )		 472 x 4.72 x 0.19
( 120 x 120 x 5 )		 2.20 x 0.70
( 56 x 1.8 )		 1.89 x 0.7
( 48 x 2 )
6.56 – 11.81
( 2.00 – 3.60 )		 24.2
( 11 )		 2156
( 980 )		 472 x 4.72 x 0.19
( 120 x 120 x 5 )		 2.20 x 0.70
( 56 x 1.8 )		 1.89 x 0.7
( 48 x 2 )
7.21 – 13.12
( 2.20 – 4.00 )		 26.4
( 12 )		 1386
( 6300 )		 472 x 4.72 x 0.19
( 120 x 120 x 5 )		 2.20 x 0.70
( 56 x 1.8 )		 1.89 x 0.7
( 48 x 2 )
7.87 – 13.77
( 2.40 – 4.20 )		 27.5
( 12.5 )		 1166
( 530 )		 472 x 4.72 x 0.19
( 120 x 120 x 5 )		 2.20 x 0.70
( 56 x 1.8 )		 1.89 x 0.7
( 48 x 2 )
8.20 – 14.76
( 2.50 – 4.50 )		 31.9
( 14.5 )		 1496
( 680 )		 472 x 4.72 x 0.19
( 120 x 120 x 5 )		 2.20 x 0.70
( 56 x 1.8 )		 1.89 x 0.7
( 48 x 2 )
8.85 – 16.40
( 2.70 – 5.00 )		 36.3
( 16.5 )		 1320
( 600 )		 472 x 4.72 x 0.19
( 120 x 120 x 5 )		 2.20 x 0.70
( 56 x 1.8 )		 1.89 x 0.7
( 48 x 2 )
9.84 – 16.40
( 3.00 – 5.50 )		 37.4
( 17 )		 836
( 380 )		 472 x 4.72 x 0.19
( 120 x 120 x 5 )		 2.20 x 0.70
( 56 x 1.8 )		 1.89 x 0.7
( 48 x 2 )

We reserve the right to improve or withdraw the specification or products without prior notice.
