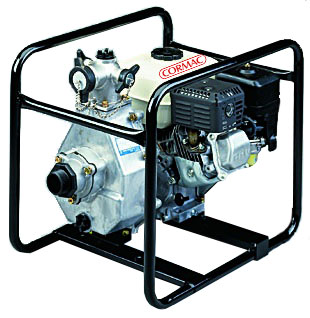

High Pressure Gasoline Water Pump
| SPECIFICATIONS | MODEL WB150S | |
| ENGINE | Model | Kapa 188F |
| Displacement cm3 ( cu/inch ) | 389 cm3 - ( 23.7 cu/in ) | |
| Type | Single cylinder, 4 stroke | |
| Max output hp/rpm | 13 hp / 3600 rpm | |
| Start mode | Recoil | |
| Fuel tank capacity L ( Gal ) | 6.5 - ( 1.71 ) | |
| Fuel continuos time /hour | 3 | |
| PUMP | Outlet mm ( Inch ) | 50 x 25.4 + 38.1/38.1 - ( 2 x 1 + 1.5 / 1.5 ) |
| Max capacity Lit/min ( Gal/min ) | 400 - ( 105.6 ) | |
| Total head Mts ( Feet ) | 6 - ( 19.69 ) | |
| Suction lift Mts ( Feet ) | 110 - ( 360 ) | |
| UNIT | Dimensions Lx W x H mm ( Inch ) | 520 x 400 x 490 - ( 20.47 x 15.74 x 19.29 ) |
| Dry weight Kg ( Lb ) | 28 - ( 62 ) |
We reserve the right to improve or withdraw the specification or products without prior notice.
