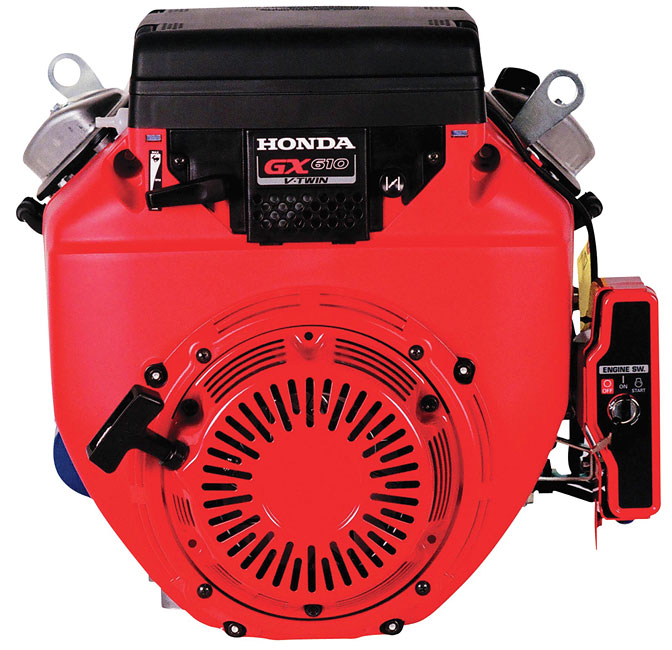

HONDA GX 610R1QZB2 –  18 HP ELECTRIC AND RECOIL STARTER
20 AMP CHARGE

Features

  • Honda OHV Commercial-grade engine
  • Horizontal shaft
  • Automatic decompression/Oil Alert
  • EPA/CARB compliant

Applications: Concrete saws, Pressure washers, Chipper/shredders, Trenchers, Generators, Vibratory rollers, Ride-on cement trowels, Lawn tractors

Engine Type Air-cooled, 4-Stroke, OHV, single cylinder
Bore x Stroke mm ( inch ) 77 x 66 mm ( 3.0 x 2.6 in )
Cylinders 2
Displacement Cm ( inch ) 614 cm3  ( 37.5 cu in )
Compression Ratio 8.3 : 1
Net Horse Power Output* 12.4 kW ( 16.6 Hp ) at 3,600 rpm's
Net Torque 25.1 Nm ( 18.5 lbs ft) at 2,500 rpm's
Crankshaft Q type
PTO Shaft Rotation Counterclockwise ( from PTO shaft side )
Ignition System Transistorized magneto ignition
Starting System Electric and recoil starter
Carburetor Horizontal type butterfly valve
Lubrication System Forced Splash
Governor System Centrifugal Mechanical
Air Cleaner Dual element air cleaner
Oil Capacity Lts ( us qt ) 1.4 lts  (1.48 US qt )
Shaft diameter mm ( inch ) 25.4 mm ( 1 “ )
Shaft length mm  ( inch ) 73.66 mm  ( 2 29/32” )
Shaft end tapped / threads mm ( Inch )
9.52 mm - 24 ( 3/8” – 24 )
Fuel Tank Capacity Lts ( us qt ) Not included
Dimensions (L x W x H) mm ( inch ) 388 x 457 x 452mm (15.3 x 18.0 x 17.8 in)
Dry Weight Kg ( lbs ) 42.0 kg ( 92.6 lbs )

* The power rating of the engine indicated in this document is the net power output tested on a production engine for the engine model and measured in accordance with SAE J1349 at 3600 rpm (7000 rpm for model GHX50). Mass production engines may vary from this value. Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance and other variables.

We reserve the right to improve or withdraw the specification or products without prior notice.
