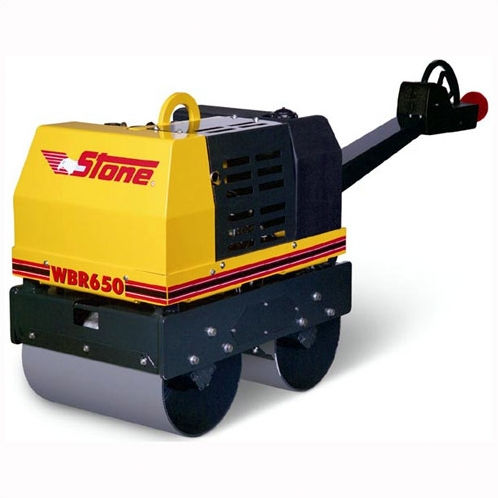

The durable, rugged, reliable Stone Walk-behind vibratory roller is ideal for a wide variety of asphalt and soil compaction applications.

A combination of variable forward and reverse drive, low center of gravity, high curb clearances and tight wall-behind roller highly maneuverable for confined area compaction, as well as, patching and repair, finishing along curbs, rolling road acces ramps and walkways.

Features

  • Ergonomically designed
  • Heavy duty, wear resistant steel drums.
  • Superior vibration isolation to the transmission and the operator.
  • Reverse stop button.
  • Easy access to service points as drive gears, drive belt and clutch assembly.
  • Large capacity water tank, a non corrosive water system and adjustable scrapers included
SPECIFICATIONS WBR650
Operating Weight Lbs ( Kg ) 1720 lbs - ( 780 kg )
 Dry Weight Lbs ( Kg ) 1595 lbs - ( 724 kg )
Drum Width Inch ( mm ) 25.5 “ - ( 648 cm )
Drum Diameter Inch ( mm ) 16.5 “ - ( 419 cm )
Engine Hp ( kN ) 10 Hp Lombardini Diesel - ( 7.3 kN )
Impact Lbs (kN ) 2925 lbs - ( 13 kN )
Frequency Vpm ( Hz ) 3300 Vpm - ( 55 Hz )

We reserve the right to improve or withdraw the specification or products without prior notice.
