Improved ergonomics, improved useful life

The new-generation gasoline demolition hammers offer improved ease of use without compromising their very good demolition performance. The improved engine cooling makes working at lower engine temperatures more pleasant. In addition, the new generation of hammers are easier to start and have an improved useful life. Just a few components and easy accessibility make maintenance and handling extremely simple.

  • Thrifty, low-emission WM 80, the engine of the future. Wacker Neuson's own development: light, environmentally sound, and user-friendly
  • Long continuous operating time due to low consumption and large-volume fuel tank
  • Simple percussion system maintenance at the site with a small grease gun by way of the central zerk fitting
  • Shank(s) for all standard tools
  • Flexible use, independent of compressed air supply and compressors
  • The supplementary handle makes the machine easier to use

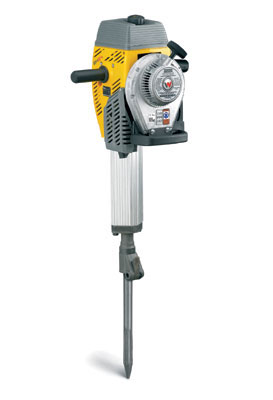

SPECIFICATIONS BH 24
Length x width x height w/o tool in ( cm ) 37.8 x 17.7 x 13.1 - ( 96.01 x 44.95 x 33.27  )
Weight w/o tool lb ( kg ) 57.3 - ( 26)
Shipping weight lb ( kg ) 70.6 - ( 32.02 )
Shipping size in ( cm ) 38.6 x 18.5 x 14.2 - ( 98.04 x 47 x 36.06 )
Shank in ( cm ) Ø 1 -1/8 x 6
Percussion rate Blows/min 1250
Impact energy ft.lb/blow 47.9
Hand arm acceleration m/s² 6
Sound pressure level dB(A) 108.5
Engine type Air cooled, single cylinder 2 cycle gasoline engine WM 80
Displacement in³ 4.9
Max rated power hp@rpm 2.7@4100
Power rating specification DIN ISO 3046
Fuel to oil ratio 50:1
Fuel consumption qt/h 1  - ( 0.94 )
Fuel tank capacity qt ( lt ) 2.2 - ( 2.08 )

Optional trolley Kart

We reserve the right to improve or withdraw the specification or products without prior notice.
