Centrifugal dewatering pumps are the value alternative for keeping jobsites dry

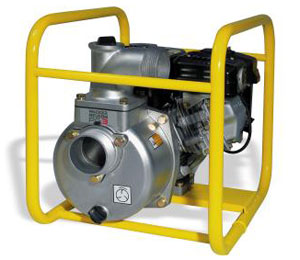

Wacker Neuson's PG dewatering pump series has been designed to handle the removal of relatively clean jobsite water. With its self-priming centrifugal pumping action and overall compact size, the pump is ideal for the contractor with the need for temporary water removal.

  • Cast iron impeller and volute are wear resistant for long life and minimal service.
  • Pump out vanes on back of impeller reduce debris accumulation and downtime while allowing greater productivity.
  • Carbon ceramic mechanical seal teamed with reliable four-cycle engine with low oil shutdown provides for increased operating life.
  • High strength lightweight diecast aluminum housing increases the years of trouble-free pump life. A heavy-duty protective frame provides convenient carry handles while adding extra protection for the pump.
  • Self-priming high performance pump capable of handling solids up to .25 inch (6,5mm), ideal for jobsites with relatively clean waters.
SPECIFICATIONS PG 2 PG 2A PG 3 PG 3A
Suction & discharge diameter in ( cm ) 2 - ( 5.1 ) 2 - ( 5.1 ) 3 - ( 7.6 ) 3 - ( 7.6 )
Dimensions  l x w x h in ( cm ) 19 x 15 x 15.5
( 48.3 x 38.1 x 39.4 )
19 x 15 x 15.5
( 48.3 x 38.1 x 39.4 )
20 x 16 x 18
( 50.8 x 40.6 x 45.7 )
20 x 16 x 18
( 50.8 x 40.6 x 45.7
Weight lb ( kg ) 53 - ( 24.04 ) 53 - ( 24.04 ) 69 - ( 31.29 ) 69 - ( 31.29 )
Shipping weight lb ( kg ) 57 - ( 25.85 ) 57 - ( 25.85 ) 75 - ( 34.01 ) 75 - ( 34.01 )
Shipping size  l x w x h in ( cm ) 20 x 16 x 17
( 50.8 x 40.6 x 43.2 )
20 x 16 x 17
( 50.8 x 40.6 x 43.2 )
21 x 17 x 19.5
( 53.3 x 43.2 x 49.5 )
21 x 17 x 19.5
( 53.3 x 43.2 x 49.5 )
Maximum head ft ( mt ) 98 - ( 29.87 ) 98 - ( 29.87 ) 98 - ( 29.87 ) 98 - ( 29.87 )
Max discharge gal/min ( lt/min ) 158 - ( 598.09 ) 159 - ( 601.88 ) 256 - ( 969.06 ) 264 - ( 999.34 )
Max suction lift ft ( mt ) 26 - ( 7.92 ) 25 - ( 7.62 ) 26 - ( 7.92 ) 25 - ( 7.62 )
Solid size capacity in ( cm ) 0.25 - ( 0.6 ) 0.25 - ( 0.6 ) 0.25 - ( 0.6 ) 0.25 - ( 0.6 )
Engine type Air cooled 4 cycle single cylinder gasoline engine WM Air cooled 4 cycle single cylinder gasoline engine Honda Air cooled 4 cycle single cylinder gasoline engine WM Air cooled 4 cycle single cylinder gasoline engine Honda
Displacement in³ 7.7 7.2 10.3 9.9
Operating speed rpm 3600 3600 3600 3600
Max rated power hp @ rpm 4.3@4000 3.5@3600 5.7@4000 4.8@3600
Power rating specification SAE J1349 SAE J1349 SAE J1349 SAE J1349
Fuel consumption qt/hr ( lt/hr ) 1.4 - ( 1.32 ) 1.4 - ( 1.32 ) 1.9 - ( 1.79 ) 1.9 - ( 1.79 )
Fuel capacity qt/hr ( lt/hr ) 2.8 - ( 2.64 ) 2.6 - ( 2.46 ) 3.8 - ( 3.59 ) 3.8 - ( 3.59 )

We reserve the right to improve or withdraw the specification or products without prior notice.
