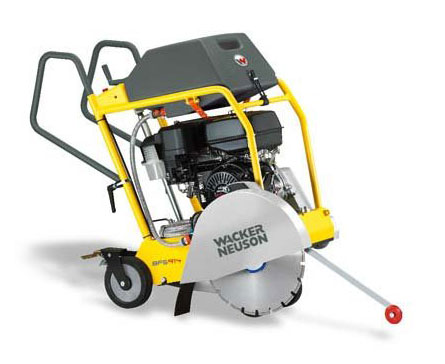

Maximum cutting speed and smooth operation

These floor saws offer a cutting performance second to none in this class of machines. The torque transmitted to the diamond blade and the center of gravity located directly over the cutting shaft have been matched so efficiently, that the majority of the engine's power output goes there where it is needed: into the asphalt or the concrete. These two features result in cuts up to 20 per cent faster than comparable products.

  • The unique, ergonomic handle system makes individual adjustments of the handle width and height possible, thus allowing for optimum operator control of the machine.
  • Extremely high cutting performance with a cutting depth of 6.5” (16 cm) when using a 14” (350 mm) cutting blade. The water tank puts pressure on the cutting blade, thus making for very stable cuts.
  • The BFS is so light that it can be easily lifted by two people.
  • The central lifting point, integrated in the durable protective cage, plus the foldable guide handles make transporting the machine extremely easy.
  • Unit features large, removable, 33.8 quarts (32 liter) capacity water sprinklers on both sides of cutting blade.
  • Heavy-duty Honda engine provides outstanding performance.

SPECIFICATIONS BFS 914AB BFS 914B BFS 1318AB
Length x width x height Transport dimension in ( cm ) 43.7 x 22.4 x 42.4 - (111 x 56.89 x 107.7) 43.7 x 22.4 x 42.4 - (111 x 56.89 x 107.7) 43.7 x 22.4 x 42.4 - (111 x 56.89 x 107.7)
Length x width x height Handle up and pointer down in ( cm ) 55.6 x 19.1 x 39.3 - (141.22 x 48.51 x 99.82) 55.6 x 19.1 x 39.3 - (141.22 x 48.51 x 99.82) 55.6 x 19.1 x 39.3 - (141.22 x 48.51 x 99.82)
Shipping size   l x w x h in ( cm ) 44.1 x 24 x 44.1 - ( 112.01 x 60.96 x  112.01 ) 44.1 x 24 x 44.1 - ( 112.01 x 60.96 x  112.01 ) 44.1 x 24 x 44.1 - ( 112.01 x 60.96 x  112.01 )
Weight lb ( kg ) 192 - ( 87.08 ) 183 - ( 83 ) 207 - ( 93.89 )
Shipping weight lb ( kg ) 227 - ( 102.96 ) 218 - ( 98.88 ) 242 - ( 109.76 )
Blade diameter in ( cm ) 14 - ( 35.56 ) 14 - ( 35.56 ) 14 – 18 - ( 35.56 – 45.72 )
Arbor diameter in ( cm ) 1 - ( 2.54 ) 1 - ( 2.54 ) 1 - ( 2.54 )
Nominal blade speed rpm 2200 2200 2200
Max cutting depth in ( cm ) 5 - ( 12.7 ) 5 - ( 12.7 ) 6.5 - ( 16.51 )
Water tank capacity qt ( lt ) 33.8 - ( 31.98 ) 33.8 - ( 31.98 ) 33.8 - ( 31.98 )
Engine Air cooled single cylinder 4 stroke Honda gasoline engine Air cooled single cylinder 4 stroke Wacker Neuson gasoline engine Air cooled single cylinder 4 stroke Honda gasoline engine
Displacement in³ 16.5 16.2 -
 Max power output hp 9@3600 9@4000 9@3600
Fuel consumption qt/h ( lt/h ) 3.2 ( 3.02 ) 3.4 - ( 3.21 ) 4.5 - ( 4.25 )
Fuel tank capacity qt/lt 6.3 ( 5.96 ) 6.4 - ( 6.05 ) 6.9 - ( 6.52 )

We reserve the right to improve or withdraw the specification or products without prior notice.
