Outstanding performance and excellent value

Compact and lightweight floor saws offer outstanding cutting performance, maximum cutting speed, smooth operation and excellent manueverability. These units bridge the gap between a hand-held cut-off saw and a larger walk-behind floor saw. Ideal for small cuts in asphalt and concrete for patching and repairs jobs, and applications such as installing electric fencing, lighting, etc.

  • Front-mounted engine optimizes weight distribution and center of gravity providing better cutting speed and performance.
  • Height-adjustable handle offers comfortable hand-push operation and better maneuverability.
  • Lightweight and front handle allows saw to be easily lifted by two people.
  • High strength, heat-resistant Poly-V belt connects the engine and cutting blade with improved efficiency and transmits power to the cutting disc.
  • Hinged blade guard provides maximum cutting reach and makes changing the blade easier.
  • Dual-side mountable cutting blade eliminates the need to reposition/relocate the machine on long cutting operation.

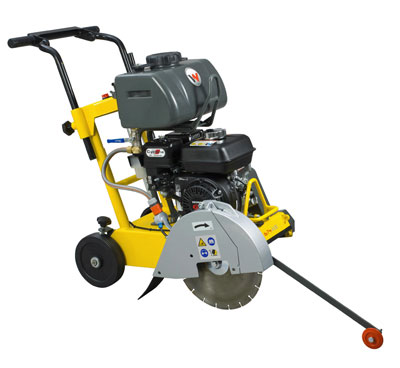

SPECIFICATIONS BFS 614B BFS 614AB
Length x width x height Transport dimension in ( cm ) 36.1 x 19 x 32.7 - (91.69 x 48.26 x 83.05) 36.1 x 19 x 32.7 - (91.69 x 48.26 x 83.05)
Length x width x height Handle up and pointer down
in ( cm )		 55.6 x 19.1 x 39.3 - (141.22 x 48.51 x 99.82) 55.6 x 19.1 x 39.3 - (141.22 x 48.51 x 99.82)
Weight w/355mm blade lb ( kg ) 143 - 64.86 ) 143 - ( 64.86 )
Blade diameter in ( cm ) 14 - ( 35.56 ) 14 - ( 35.56 )
Arbor diameter in ( cm ) 1 - ( 2.54 ) 1 - ( 2.54 )
Nominal blade speed rpm 2890.5 2890.5
Peripheral blade speed at Ø 355 ft/sec ( mt/sec ) 176 - ( 53.64  ) 176 - ( 53.64  )
Max cutting depth w/355 dia blade in ( cm ) 4.9 - ( 12.44 ) 4.9 ( 12.44 )
Engine Air cooled single cylinder 4 stroke Wacker Neuson gasoline engine Air cooled single cylinder 4 stroke Honda gasoline engine
Model WM170 GX160
Displacement in³ 10.31 10.31
 Max power output hp 5.7 4.8
Fuel consumption qt/h ( lt/h ) 1.6 - ( 1.51 ) 1.9 - ( 1.79 )
Tank capacity qt/lt 3.75 - ( 3.54 ) 3.27 - ( 3.09 )

We reserve the right to improve or withdraw the specification or products without prior notice.
