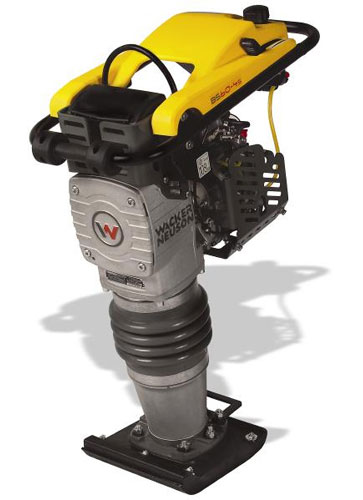

Wacker BS50-4 and BS60-4 rammer tampers deliver outstanding
performance - Add Wacker's exclusive WM 90 4 cycle engine to
preferred vibratory rammer design in the industry and you have a
winning combination. The WM 90 Wacker engine is specifically
designed for rugged soil tamper applications. A 4 cycle Wacker dirt Patent-pending low oil shutdown provides unique technology that protects the engine. When starting the BS50-4s or BS60-4s, should the electronic sensor detect no oil or low oil, a red flashing light signals the operator and the engine will shut off within about 10 seconds. A unique three-stage air filtration system provides a virtually dust-free engine for longer life and improved durability. This Wacker jumping jack tamper features a dedicated 4 cycle crankcase for increased durability and simplified maintenance Wacker BS 50-4 and BS 60-4 dirt tamper features a unique
crankcase breather system and a three-piece piston oil ring
providing for lower oil consumption |
| SPECIFICATIONS | BS 50-4S | BS 60-4S | |
| Length x width s height Inch ( cm ) | 26.5 x 13.5 x 37 - ( 67.5 x 34.29 x 93.98 ) | 26.5 x 13.5 x 38 - ( 67.5 x 34.29 x 96.52 ) | |
| Shoe size Inch ( cm ) | 11 x 13 - ( 27.94 x 33.02 ) | 11 x 13 - ( 27.94 x 33.02 ) | |
| Operating weight Lbs ( Kg ) | 139 - ( 63.18 ) | 156 - ( 70.90 ) | |
| Shipping weight Lbs ( Kg ) | 156 - ( 70.90 ) | 173 - ( 78.63 ) | |
| Shipping size l x w x h Inch ( cm ) | 39 x 15 x 27 - ( 99.06 x 38.1 x 68.58 ) | 39 x 15 x 27 - ( 99.06 x 38.1 x 68.58 ) | |
| Stroke In ( cm ) | 1.56 - ( 4.0 ) | 2.7 - ( 6.9 ) | |
| Percussion rate Blows /min | Up to 660 | Up to 680 | |
| Travel speed Ft / min ( mts / min ) | 25.9 - ( 7.89 ) | 28 - ( 8.53 ) | |
| Compacted area Ft²/h ( mt²/h ) | 1428 - ( 132.66 ) | 1523 - ( 141.49 ) | |
| Engine Type | Air cooled, 4 cycle, single cylinder, WM 100 gasoline engine | ||
| Displacement in³ | 5.3 | 5.9 | |
| Operating speed rpm | 4200 | 3950 | |
| Max rated power Hp @ rpm | 3.2 @ 4200 | 3.2 @ 4200 | |
| Power rating specification | SAE J1995 | ||
| Fuel consumption qt/h ( Lt/h ) | 1.3 - ( 1.23 ) | 1.3 - ( 1.23 ) | |
| Fuel tank capacity Qt ( Lt ) | 3.2 - ( 3.02 ) | 3.2 - ( 3.02 ) | |
| Oil tank capacity Qt ( lt ) | 0.75 - ( 0.71 ) | 0.75 - ( 0.71 ) | |
| Power train | Power train from engine via centrifugal clutch, gears, crank mechanism, connecting rod, guiding piston, double spring system, spring cylinder onto ramming shoe. Clutch engages when accelerating | ||
We reserve the right to improve or withdraw the specification or products without prior notice.
