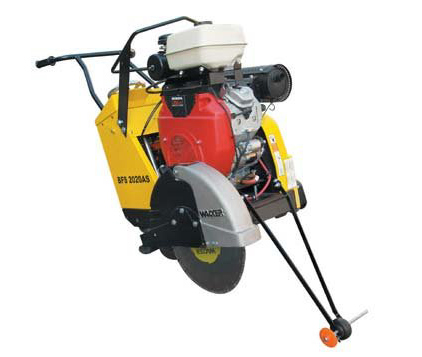

Self-propelled walk-behind saws for fast cutting

These innovative self-propelled walk-behind saws offer an infinitely adjustable travel speed requiring minimal operator effort. Saws feature a heavy duty hydrostatic transmission with variable speed drive of 0-80 ft/min. All controls are operable from the control panel making operation quick and easy for all operators. These saws offer reliability for any job site, along with operator convenience for added productivity.

  • Machine's center of gravity (engine) is positioned directly over the cutting shaft to keep the blade inside the cut providing for smooth cutting, directional stability and reduced lateral wear of the cutting blade.
  • One piece steel frame offers added durability. Frame will not bend or flex during operation providing for straighter, high quality cuts.
  • Blade guard mounts on either left or right side providing for versatility and extremely close (within one inch of wall) cuts.
  • Water sprinklers on both sides of cutting blade keep blade cool during operation for extended blade life.
  • Optional large water tank offers long run times in between fills or when water is not readily available.
  • Saws are powered by job site proven EPA approved engines with automatic low oil shut-off.
SPECIFICATIONS BFS 1318AS BFS 2020AS
Length x width x height Transport dimension in ( cm ) 65 x 25 x 37 - (165.1 x 63.5 x 93.98) 65 x 26 x 37 - (165.1 x 66.04 x 93.98)
Shipping size   l x w x h in ( cm ) 45 x 28 x 48 - ( 114.3 x 71.12 x  121.92 ) 45 x 28 x 48 - ( 114.3 x 71.12 x  121.92 )
Weight lb ( kg ) 310 - ( 140.61 ) 392 - ( 177.80 )
Shipping weight lb ( kg ) 365 - ( 165.56 ) 442 - ( 200.48 )
Blade diameter in ( cm ) 18 - ( 45.72 ) 20 - ( 50.8 )
Arbor diameter in ( cm ) 1 - ( 2.54 ) 1 - ( 2.54 )
Nominal blade speed rpm 2380 2380
Max cutting depth in ( cm ) 6.6 - ( 16.76 ) 7.6 ( 19.30 )
Water tank capacity qt ( lt ) 26 - ( 24.6 ) 26 - ( 24.6 )
Engine Air cooled single cylinder 4 stroke Honda gasoline engine Air cooled single cylinder 4 stroke Honda gasoline engine
Displacement in³ 23.7 37.5
 Max power output hp 11@3600 18.1@3600
Fuel consumption qt/h ( lt/h ) 0.33 - ( 0.31 ) 0.33 - ( 0.31 )
Fuel tank capacity qt/lt 6.9 - ( 6.52 ) 8 - ( 7.57 )

We reserve the right to improve or withdraw the specification or products without prior notice.
